Product Details:
|
|
Place of Origin: | Shenzhen , China |
---|---|
Brand Name: | Neutral / Customization |
Certification: | CE/FCC/RoHS |
Model Number: | DM042 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | Neutral / Customization Giftbox / 16pcs per carton |
Delivery Time: | 6~36 working days |
Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
Supply Ability: | 60000pcs/month |
Detail Information |
|||
Model Name: | DM042 | Switchable Polarizer: | Yes |
---|---|---|---|
Focus Mode: | Manual Continuous Focus | Customized Support: | OEM / ODM / OBM |
Magnification Ratio: | Real 10x~250x, Up To 1200x By Digital Zoom(Based On 21 Inch Display) | Light Source: | 8Pcs SMT White LED |
High Light: | Digital Microscope For Soldering 4.3 Inch,HDMI LCD Digital Microscope,4.3 Inch Screen LCD Digital Microscope |
Product Description
Professional HDMI LCD Digital Microscope With 4.3 Inch Screen For Adults Micro Soldering Microscope
1: The HDMI LCD digital microscope supports Any Size HDMI Monitor- in the Lab, Factory, Classroom, or Home. Or On a Computer Using the PC software.
2: Adjusting the object close to the lens, then you can view the specimens on the 4.3 inch screen clearly by rotating the focus wheel slowly.
Product Specification:
Model | Model Name | DM042 |
Features | Screen Size | 4.3 inch |
Connection | 4.3 inch LCD / USB 2.0 to PC / HDMI Port To Monitor / TV Port To Monitor | |
Image Sensor | 5 Megapixel 1/2.8" CMOS Image Sensor | |
Photo Resolution | 12MP / 10MP / 8MP / 5MP / 3MP / 2MP | |
Video Resolution | 1920*1080 / 1280*720 | |
Magnification Ratio | Real 10x~250x, Up To 1200x By Digital Zoom(Based On 21 inch Display) | |
Light Source | 8Pcs SMT White LED | |
LED Brightness Adjustable | Yes | |
Focus Range | From 0mm to 55mm on metal stand | |
Lens Type | Optical Glass | |
Advantage | Switchable Polarizer | Yes |
Brand Name | Toproview / Neutral / Customization | |
Customized Support | OEM / ODM / OBM | |
Certification | CE / FCC / RoHS | |
Focus Mode | Manual Continuous Focus | |
Rechargeable And Replaceable Battery | 1050mAh BL-5C Lithium-Ion | |
SD Card Slot | Support SD Card Storage Up To 32G (Not Included In The Neutral Package) | |
Warranty | 1 Year | |
Software | PC Software | DigiCapture Pro (Customizable) |
PC Software Supported Operation Systems | Windows 7 / 8 / 10 , macOS 11.2.1 or above | |
PC Software OSD Language | There Are 16 Languages Built In The Software | |
PC Software With Professional Measurement | Yes | |
PC Software Support Four Display Concurrently | Yes | |
PC Software Support Photo,Video Recording,Timed Photo And Timed Video | Yes | |
PC Software Support Plug and Play | Yes | |
Package details | Accessories | CD, USB Cable,HDMI Cable,TV Cable,Rechargeable Battery,Calibration Ruler, Metal Stand |
Body Dimension | 235x123x65mm | |
Gross Weight | 0.2KG | |
Gift Box | 27.5*18.5*10.5cm | |
Gross Weight | 0.85KG | |
Carton Box | 46.5*33*37.5cm | |
Gross Weight | 14.7KG | |
Carton | 16Pcs |
Product Advantages:
1: This LCD Digital Microscope is very suitable for circuit board inspection,insects,coins,jewelry, dissecting,gem,trichomes,rock and stamps,watch/clock repair,skin detect,kids education inspection,textile industrial,biological observation,QC inspection,It's a great gift ideal for kids and adults.

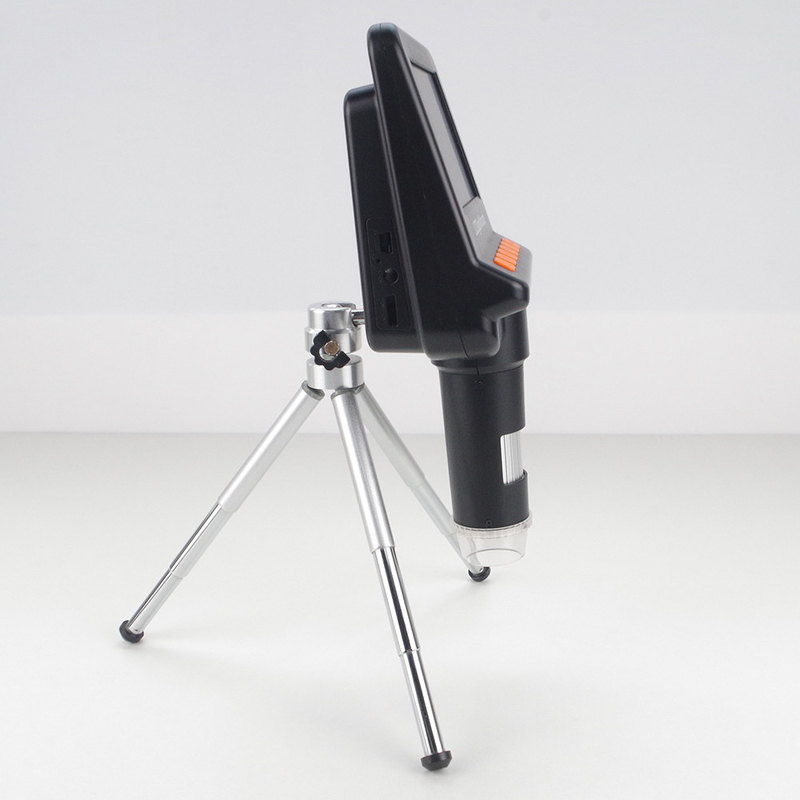

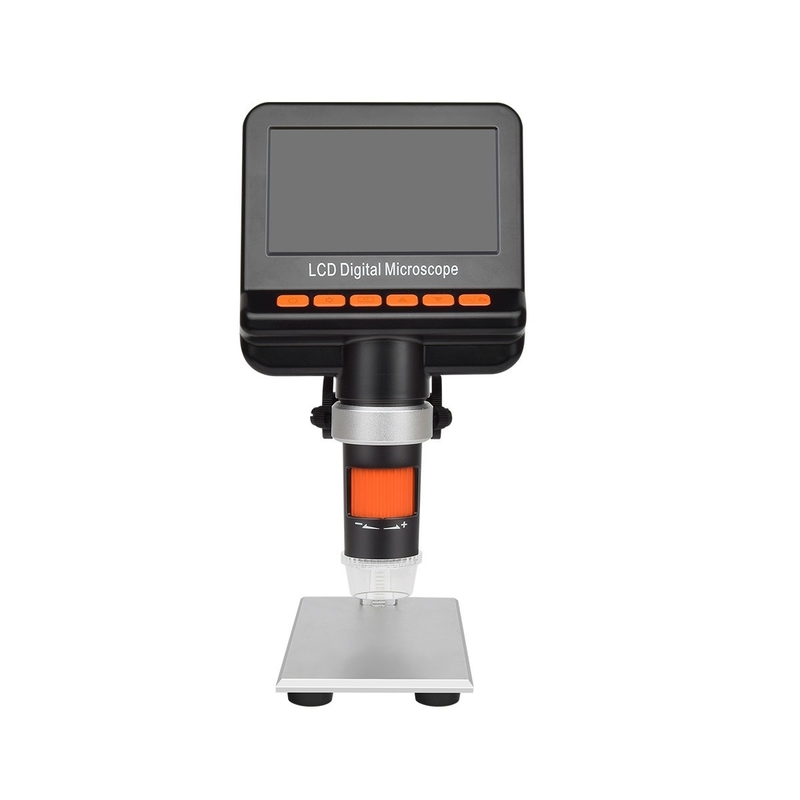

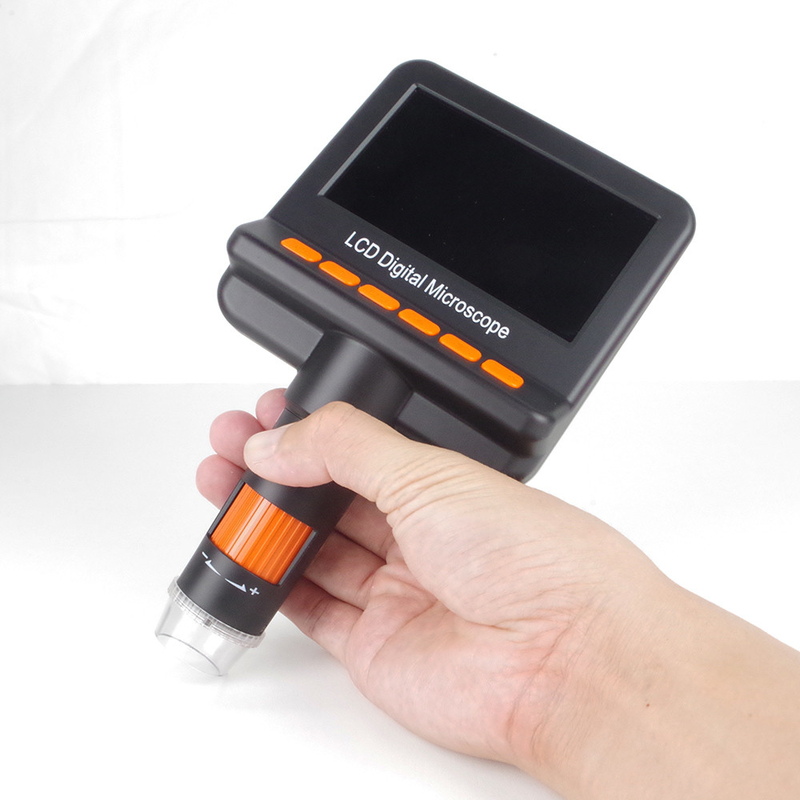

Product picture:
