18650 Battery Digital Microscope Zoom 10x Hair Scalp Detector For Hair Transplant

Product Details:
Place of Origin: China
Brand Name: Toproview/Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM023B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Product Name: DM023B Hair Scalp Detector Magnification: 10x~200x
Battery Rechargable: Yes Battery Type: 2000mAh 18650
Working Time Using Battery: 2.5 Hrs Continue Working Charging Time: Around 2.5 Hours When Machine Was Off
High Light:

toproview Battery Digital Microscope Zoom


Digital Microscope Zoom 10x toproview


10x Hair Scalp Detector fcc

Product Description


Charging Type 18650 Battery Compatible Hair Scalp Detector for Hair Transplant Field



Quick Details

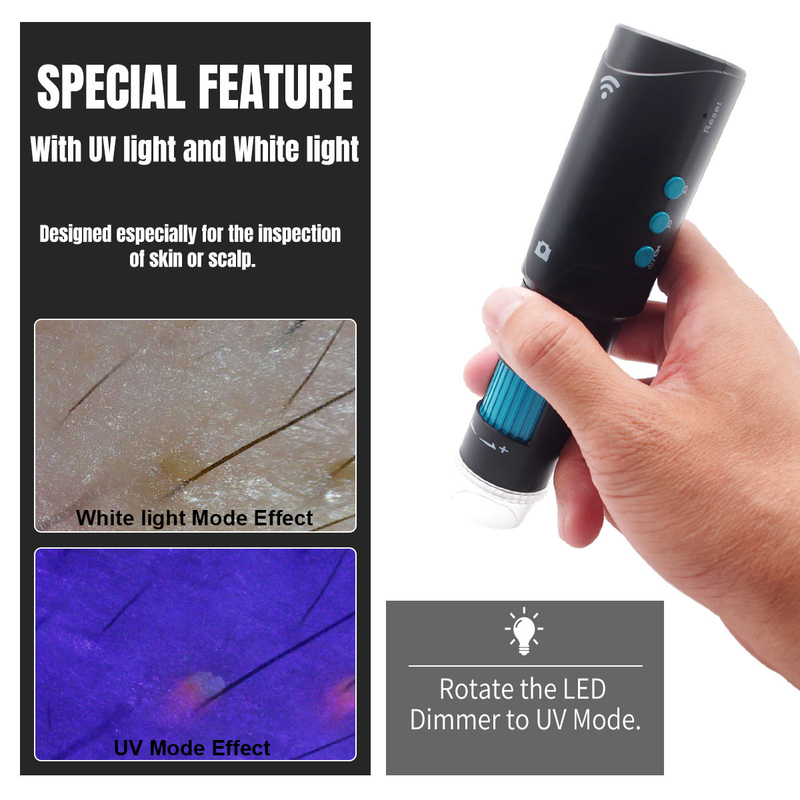

* This model DM023B Wireless Wifi Scalp Analysis microscope/dermatoscope with high resolution true 2MP, 200x magnification. With 4pcs UV LED and 4pcs white LED, easy to switch from purple light into white light or from white light into purple light, especially useful for skin, hair and scalp analyzer.



* The MicroTouch feature is a touch sensitive trigger area on the body of the microscope(skin analyzer) that can be used to trigger an image capture. Different from the old and traditional way, we use the “touch” technology instead of “press” button to avoid the vague captures by hand shaking.



MODEL Model Name DM023B
  Connection WiFi to smart devices; USB 2.0 to PC
OPTICS UV light Yes
  Magnification Real 10x~200x
  Lens type Optical glass
  Focus range Manual focus 0~110mm(with stand)
  Illumination 8 adjustable LEDs(white + purple)
SENSOR Sensor type CMOS
  Size 2 megapixel
  Resolution 1920*1080
  Max.Frame rate 25 fps at 2MP output
FEATURES APP TopScope Pro for iOS/Android (customizable)
  Software DigiCapture Pro for Windows/MacOS (customizable)
  Measurement function(PC Software) Yes
  Supported operation systems
(Smart device)
iOS 12.0 or later Android 4.2 or later
  Supported operation systems
Windows 7/8/10macOS 11.2.1 or above
  Capturing by microscope Yes with recording button on microscope
  Recording by microscope Yes with digital zoom button on microscope
  Certification CE/FCC/RoHS
REPLACEABLE BATTERY 18650 Lithium-Ion Battery 2000mAh rechargeable and replaceable
  Battery working time Continue working for 2.5 hours
  Charging time 2.5hrs (when WiFi Digital Microscope power off)
PHYSICAL Body dimensions 16.6*4.5*4.0cm
  Gross weight 0.2kg

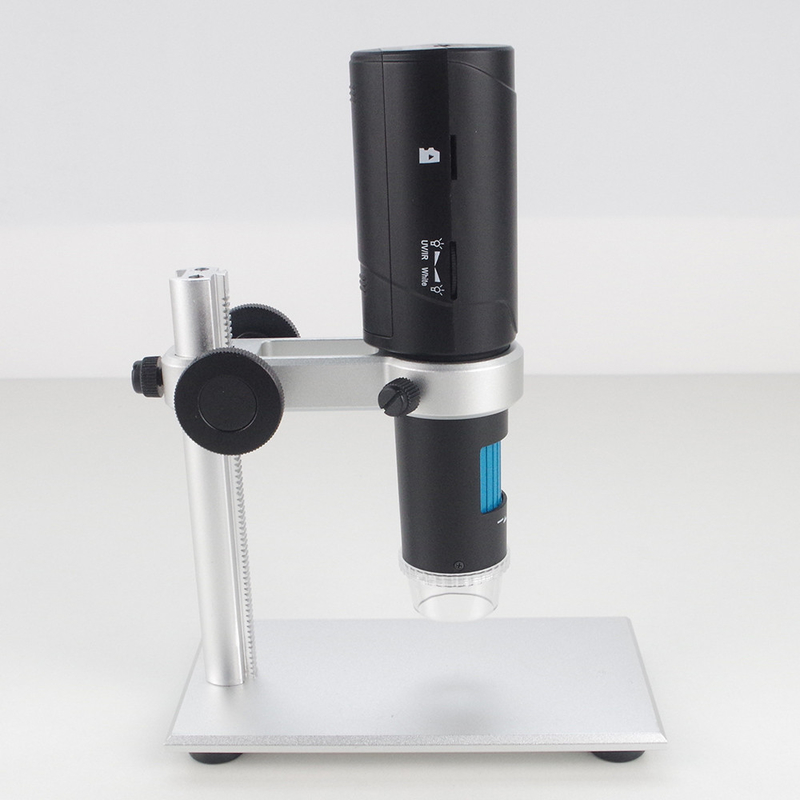

  Stand metal stand for neutral product; support to customize



* DM023B UV Wifi Scalp Analysis can be used in beauty salons, beauty chain agencies, cosmetics distribution sales, beauty products distribution sales, skin care products distribution sales, health products distribution sales, personal and family self-test and so on! Choosing a suitable cosmetic skin analyzer can improve the scientific basis of analysis, the quality of service and the efficiency of work, giving consumers a better experience.

18650 Battery Digital Microscope Zoom 10x Hair Scalp Detector For Hair Transplant 0


OEM&ODM Service

If you want to show your own brand LOGO on the product microscope, product package or software icon, it’s available. Come to us for more details right now!

Just give us an idea, and we will do the rest for you. All are based on exclusivity term!
