Shenzhen Toproview Technology Co., Ltd

50x Wifi Microscope Camera FHD Wireless Usb Microscope Magnification

Product Details:
Place of Origin: China
Brand Name: Toproview/Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM023B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Product Name: DM023B UV WiFi Microscope Light Source: Uv Light+white Light
Pixel: 2 Mega Pixel Theory: Digital Microscope
Drawtube: 50x200x Color: Black,Red/Black/Yellow/Blue
High Light:

Toproview 50x Wifi Microscope Camera


FCC Wifi Microscope Camera FHD


FHD Wireless Usb Microscope Toproview

Product Description


Dual Light Source UV and White Light WiFi Digital Microscope True 200x Magnification


Main Features

* Optional resolution from FHD(1920*1088), HD(1280*720) to VGA(864*480), are both available on mobile(Android and iOS stystem) and PC(Windows and MacOS system).

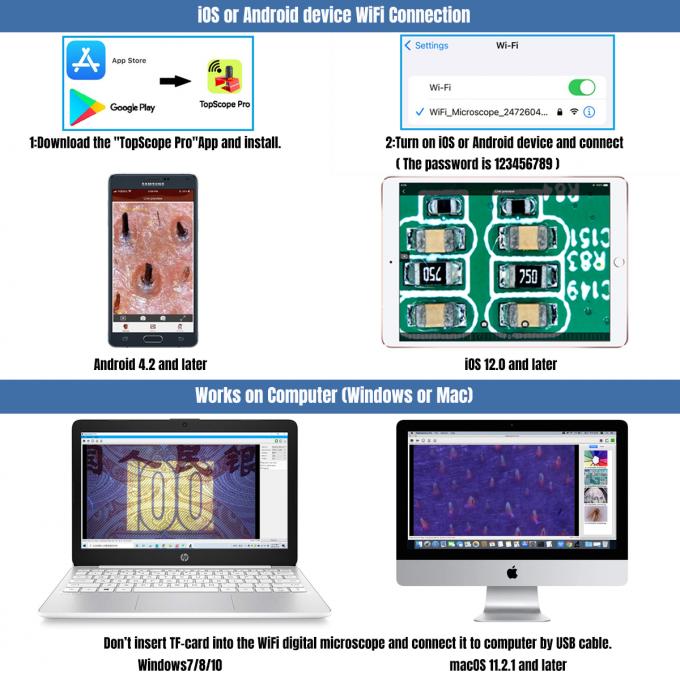

* Support to output through WiFi and USB connection, which is with the wonderful compatibility with smart devices like iPhone, iPad, Android; Windows computer; Macbook etc.,

* Supported operation systems for smart devices is iOS 12.0 or later, Android 4.2 or later. It wil compatible with at least 90% smart devices in the market.



-Easy to connect by WiFi or USB

-High detail live inspections

-Hands free stands available separately

* Electronic boards and device inspection

* Fiber and textiles check

* Cosmetic effects corroboration

* Laboratory and classroom research

50x Wifi Microscope Camera FHD Wireless Usb Microscope Magnification 0

50x Wifi Microscope Camera FHD Wireless Usb Microscope Magnification 1



MODEL Model Name DM023B
  Connection WiFi to smart devices; USB 2.0 to PC
OPTICS UV light Yes
  Magnification Real 10x~200x
  Lens type Optical glass
  Focus range Manual focus 0~110mm(with stand)
  Illumination 8 adjustable LEDs(white + purple)
SENSOR Sensor type CMOS
  Size 2 megapixel
  Resolution 1920*1080
  Max.Frame rate 25 fps at 2MP output
FEATURES APP TopScope Pro for iOS/Android (customizable)
  Software DigiCapture Pro for Windows/MacOS (customizable)
  Measurement function(PC Software) Yes
  Supported operation systems
(Smart device)
iOS 12.0 or later Android 4.2 or later
  Supported operation systems
Windows 7/8/10macOS 11.2.1 or above
  Capturing by microscope Yes with recording button on microscope
  Recording by microscope Yes with digital zoom button on microscope
  Certification CE/FCC/RoHS
REPLACEABLE BATTERY 18650 Lithium-Ion Battery 2000mAh rechargeable and replaceable
  Battery working time Continue working for 2.5 hours
  Charging time 2.5hrs (when WiFi Digital Microscope power off)
PHYSICAL Body dimensions 16.6*4.5*4.0cm
  Gross weight 0.2kg

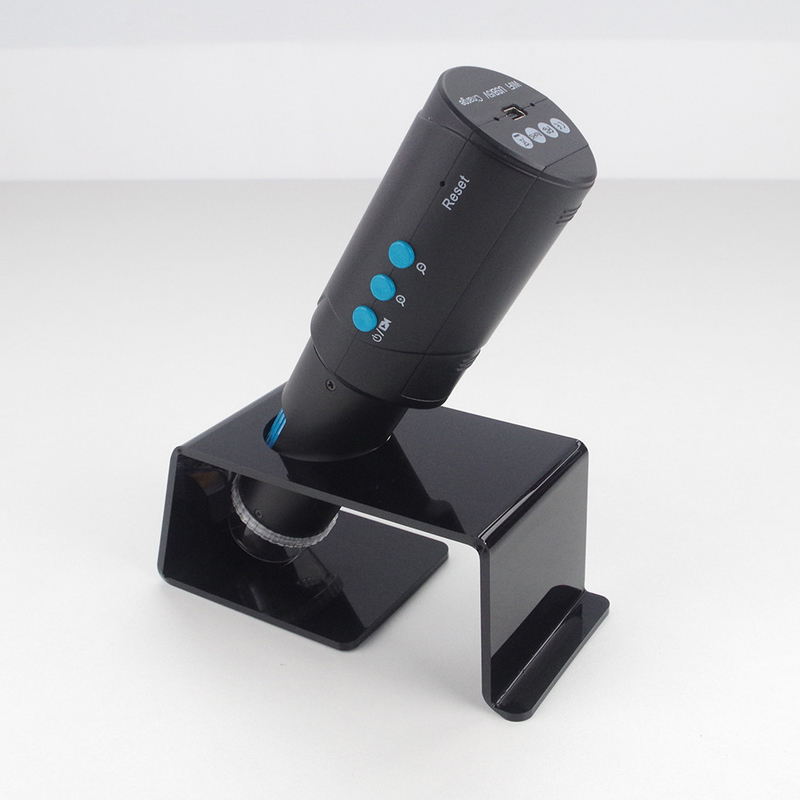

  Stand metal stand for neutral product; support to customize



Q: Do you offer custom solution?

Toproview: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements. OEM&ODM order are welcome.
