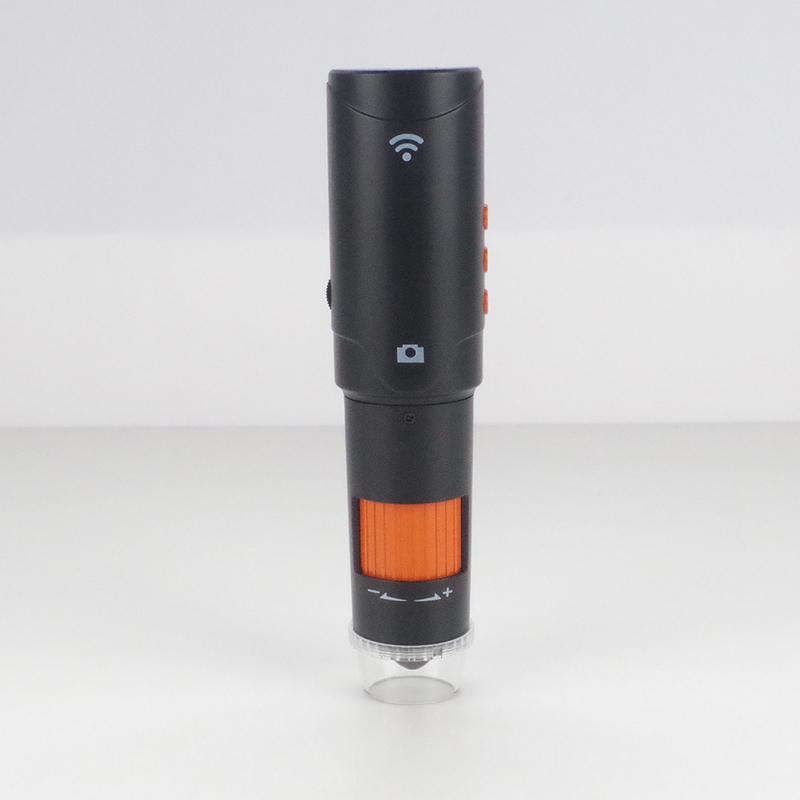

Optional 200x Wifi Digital Microscope for Kid Education Biological Learning Usage
WIFI DIGITAL MICROSCOPE DESCRIPTION
Quick Details
*Model DM023A is the new realeased product by Toproview in 2022. This model is with real 2MP resolution, real 200x magnification, both the resolution and magnification are the real specification, not the interpolation which is wide used for other products in current market. Main fetrues: polarizer build in, support take photo and video by touch or press on microscope.
Main Features
With polarization filter to check reflective surface
With rechangeasble 18650 battery, you can change the battery easiliy and make your microscope the longer working life.
With touch area on the microscope body to take the captures, which can avoid shaking by pressing and get the high quality captured images.
WIRELESS MEANS MORE - 'Cut the cord' and use a digital microscope in clinics, machine shops, in the field, under the hood, or anywhere your work takes you.
WIFI DIGITAL MICROSCOPE SPECIFICATION
|
MODEL |
Model Name |
DM023A |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Frame rate |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later, Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10,macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes, with recording button on microscope |
|
|
Recording by microscope |
Yes, with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|

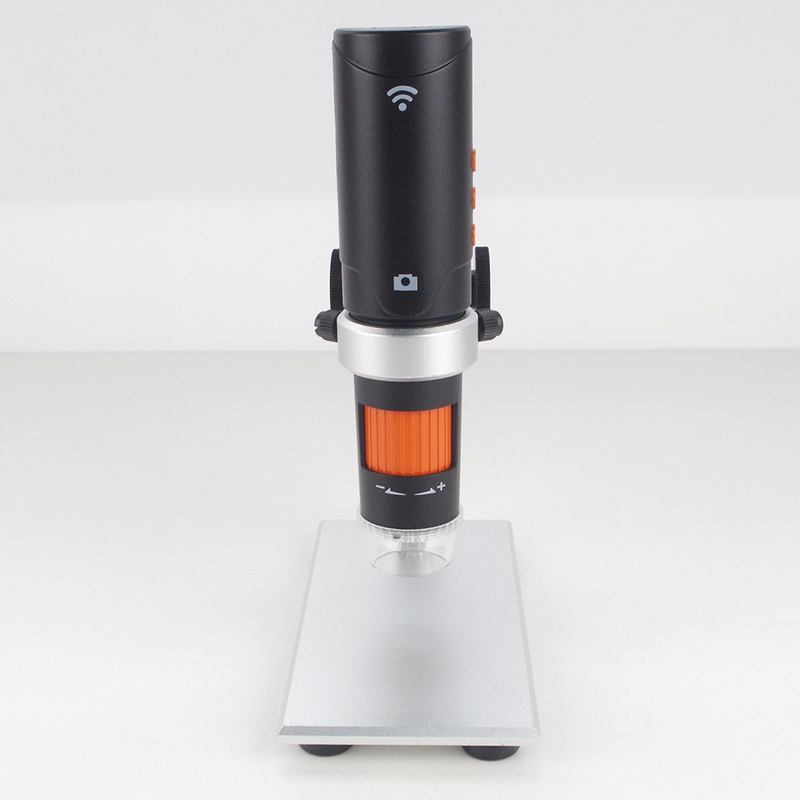

Stand |
Metal stand for neutral product; support to customize |
FAQ
Q: What's polarizer feature for digital microscope?
Toproview: This is the new technology in current digital microscope field. This new technology is creatively using the integrated polariscope knob to adjust the light intensity from the digital microscope and external environment, and attempt to reflect, reduce, filtrate the light and make it easy to observe the reflective objects. Like SMD board, diamond, crystal, porcelain, polishing metal etc., will be easy to observed with the help of this function.
