Shenzhen Toproview Technology Co., Ltd

400nm Iphone Compatible Microscope Forensic

Product Details:
Place of Origin: China
Brand Name: Toproview/Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM023B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Product Name: DM023B UV WiFi Microscope Illumination: 4 UV And 4 White LED Illumination
Service: OEM,ODM Light Source: Adjustable LED Lights
Application: Observing In The Circuit Board,Beauty Industry,medical Field,industry Education Laboratory,skin Analyser Type: Mobile Microscope,wifi Microscope
High Light:

Usb Wifi Microscope 400nm


UV Usb Wifi Microscope


400nm Iphone Compatible Microscope

Product Description

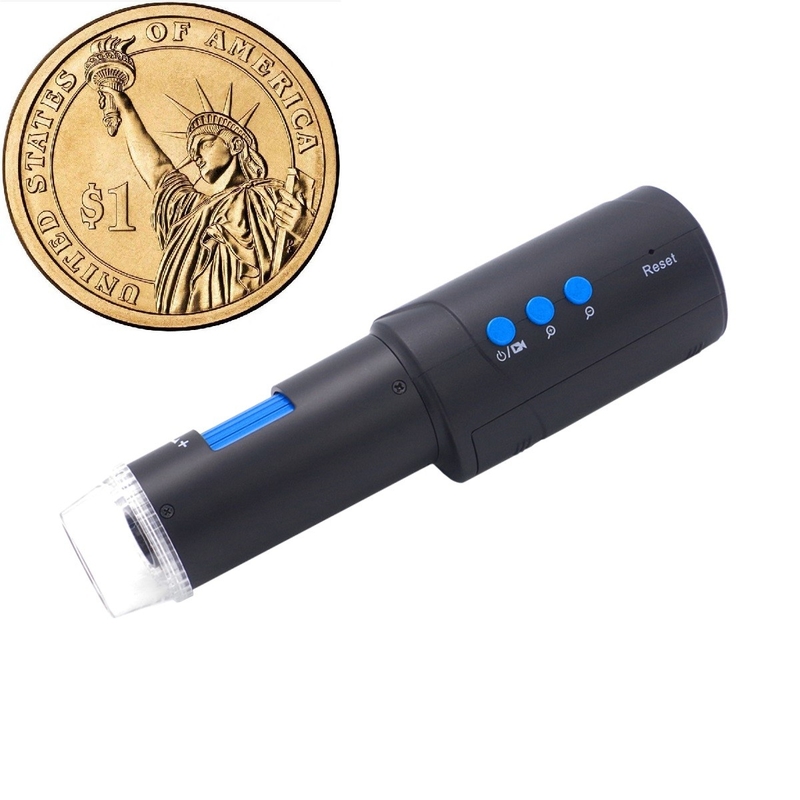

400nm UV Illumination WiFi Digital Microscope for Forensic Detection



* With recording button on microscope, allows to check the playback recording video on both smart devices APP and computer software.

* Digital zoom by microscope is available, user can zoom out or zoom in to see the partial view with this function.



* The MicroTouch feature is a touch sensitive trigger area on the body of the microscope that can be used to trigger an image capture. Different from the old and traditional way, we use the “touch” technology instead of “press” button to avoid the vague captures by hand shaking.



MODEL Model Name DM023B
  Connection WiFi to smart devices; USB 2.0 to PC
OPTICS UV light Yes
  Magnification Real 10x~200x
  Lens type Optical glass
  Focus range Manual focus 0~110mm(with stand)
  Illumination 8 adjustable LEDs(white + purple)
SENSOR Sensor type CMOS
  Size 2 megapixel
  Resolution 1920*1080
  Max.Frame rate 25 fps at 2MP output
FEATURES APP TopScope Pro for iOS/Android (customizable)
  Software DigiCapture Pro for Windows/MacOS (customizable)
  Measurement function(PC Software) Yes
  Supported operation systems
(Smart device)
iOS 12.0 or later Android 4.2 or later
  Supported operation systems
Windows 7/8/10macOS 11.2.1 or above
  Capturing by microscope Yes with recording button on microscope
  Recording by microscope Yes with digital zoom button on microscope
  Certification CE/FCC/RoHS
REPLACEABLE BATTERY 18650 Lithium-Ion Battery 2000mAh rechargeable and replaceable
  Battery working time Continue working for 2.5 hours
  Charging time 2.5hrs (when WiFi Digital Microscope power off)
PHYSICAL Body dimensions 16.6*4.5*4.0cm
  Gross weight 0.2kg

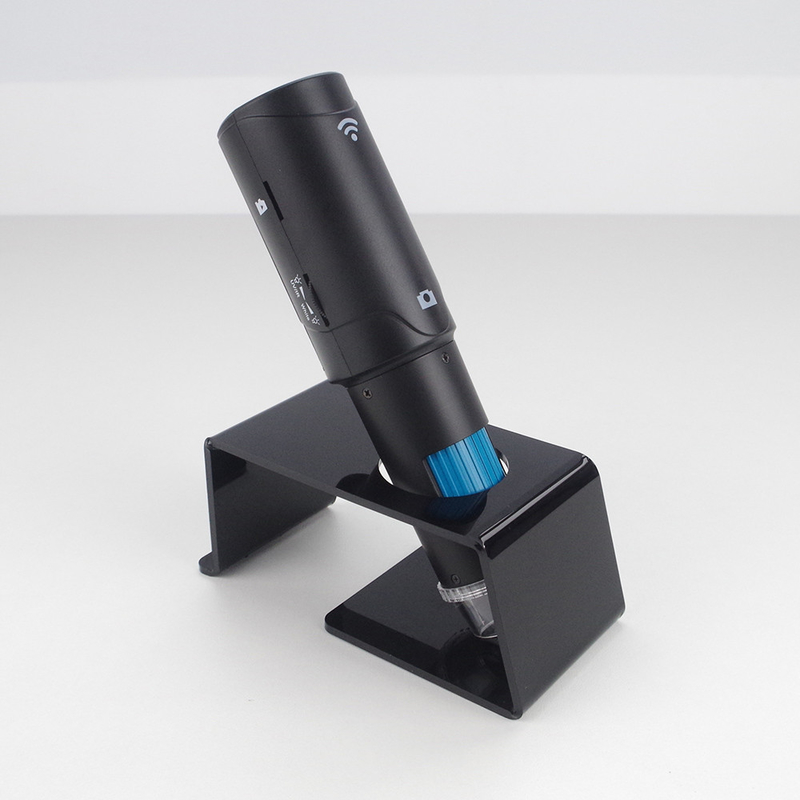

  Stand metal stand for neutral product; support to customize


400nm Iphone Compatible Microscope Forensic 0

400nm Iphone Compatible Microscope Forensic 1


* DM023B UV Wireless Digital Microscope can be used in beauty salons, beauty chain agencies, cosmetics distribution sales, beauty products distribution sales, skin care products distribution sales, health products distribution sales, personal and family self-test and so on! Choosing a suitable cosmetic skin analyzer can improve the scientific basis of analysis, the quality of service and the efficiency of work, giving consumers a better experience.
