UV 400nm Portable Digital Microscope For Students Education 200X

Product Details:
Place of Origin: China
Brand Name: Toproview/Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM023B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Product Name: DM023B UV Light Microscope Excitation (LED): 400nm
Max. Frame: 25fps@2MP Illumination: 4 UV And 4 White LED Illumination
Image Sensor: 2 Mega Pixels IOS/Android Interface: WIFI Direct
High Light:

UV 400nm Portable Digital Microscope

,

FCC 200X usb Portable Digital Microscope

,

Digital Microscope For Students 200X

Product Description



HD 1080P Output Real 200X Magnification UV Portable Digital Microscope For Hair Transplant



Quick Details

* 8 LED build in, 4pcs white LED and 4pcs purple LED, output with dimmable LED ring illuminator

With UV light especially useful for skin, hair and scalp analyzer.

With UV lens/light to see the hair follicle is blocked or the pigment precipitates or not.



Main Features

* Optional photo and video resolution is with FHD(1920*1088)/HD(1280*720)/VGA(864*480), which are available on both smart devices like iPhone, iPad, Android phone, and computer(Windows and Macbook).

* With Microtouch to get the capturing without fuzzy and trembling.

SPECIFICATION

MODEL

Model Name

DM023B



Connection

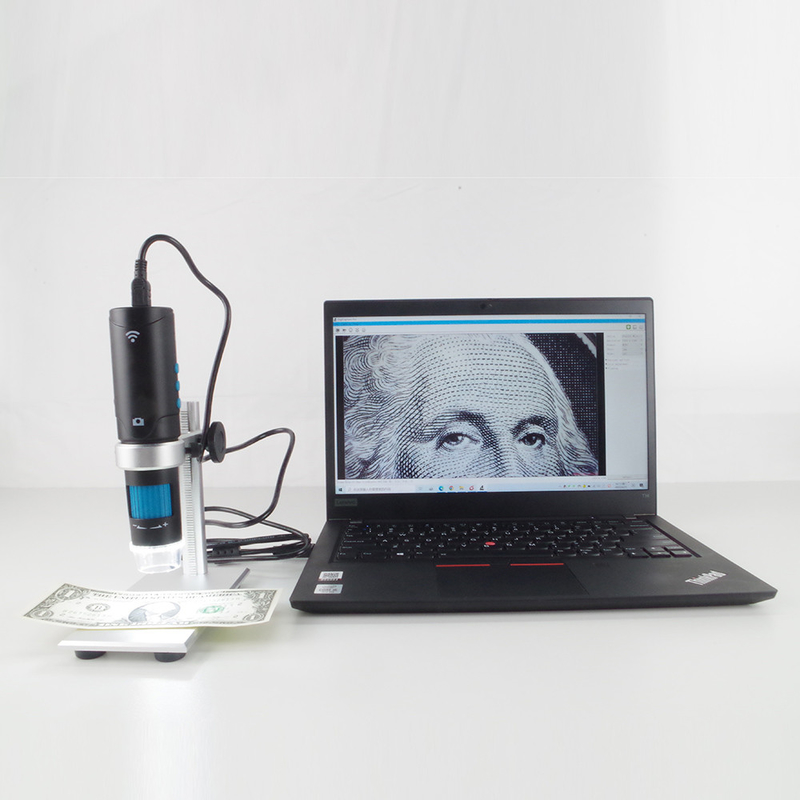

WiFi to smart devices; USB 2.0 to PC

OPTICS

UV light

Yes



Magnification

Real 10x~200x



Lens type

Optical glass



Focus range

Manual focus 0~110mm(with stand)



Illumination

8 adjustable LEDs(white + purple)

SENSOR

Sensor type

CMOS



Size

2 megapixel



Resolution

1920*1080



Max.Frame rate

25 fps at 2MP output

FEATURES

APP

TopScope Pro for iOS/Android (customizable)



Software

DigiCapture Pro for Windows/MacOS (customizable)



Measurement function(PC Software)

Yes



Supported operation systems
(Smart device)

iOS 12.0 or later Android 4.2 or later



Supported operation systems
(Computer)

Windows 7/8/10macOS 11.2.1 or above



Capturing by microscope

Yes with recording button on microscope



Recording by microscope

Yes with digital zoom button on microscope



Certification

CE/FCC/RoHS

REPLACEABLE BATTERY

18650 Lithium-Ion Battery

2000mAh rechargeable and replaceable



Battery working time

Continue working for 2.5 hours



Charging time

2.5hrs (when WiFi Digital Microscope power off)

PHYSICAL

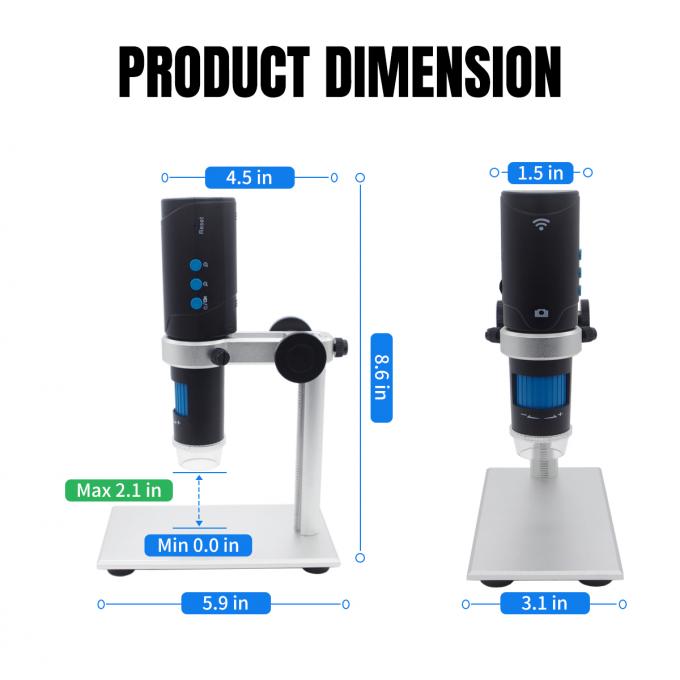

Body dimensions

16.6*4.5*4.0cm



Gross weight

0.2kg



Stand

metal stand for neutral product; support to customize





APPLICATIONS

* Skin and hair status confirmation

* Graphic design and printing inspection

* Art appreciation and authentication

* Electronic boards and device inspection

* Fiber and textiles check

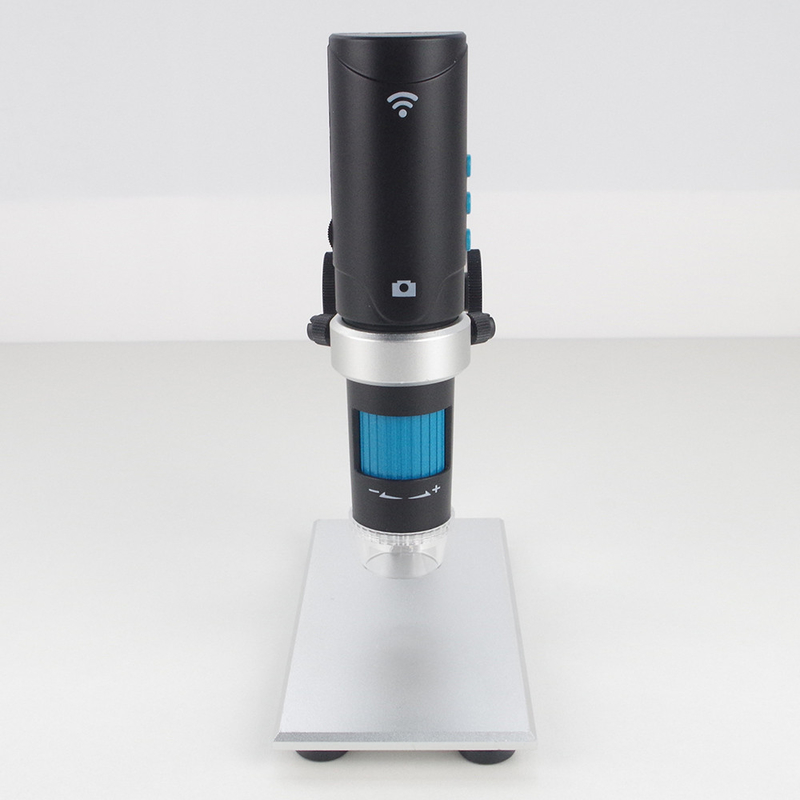

UV 400nm Portable Digital Microscope For Students Education 200X 0

UV 400nm Portable Digital Microscope For Students Education 200X 1

FAQ

Q: Do you offer custom solution?

Toproview: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements. OEM&ODM order are welcome.

Q:Why choose Toproview microscopes?

Toproview: Professional yet affordable
