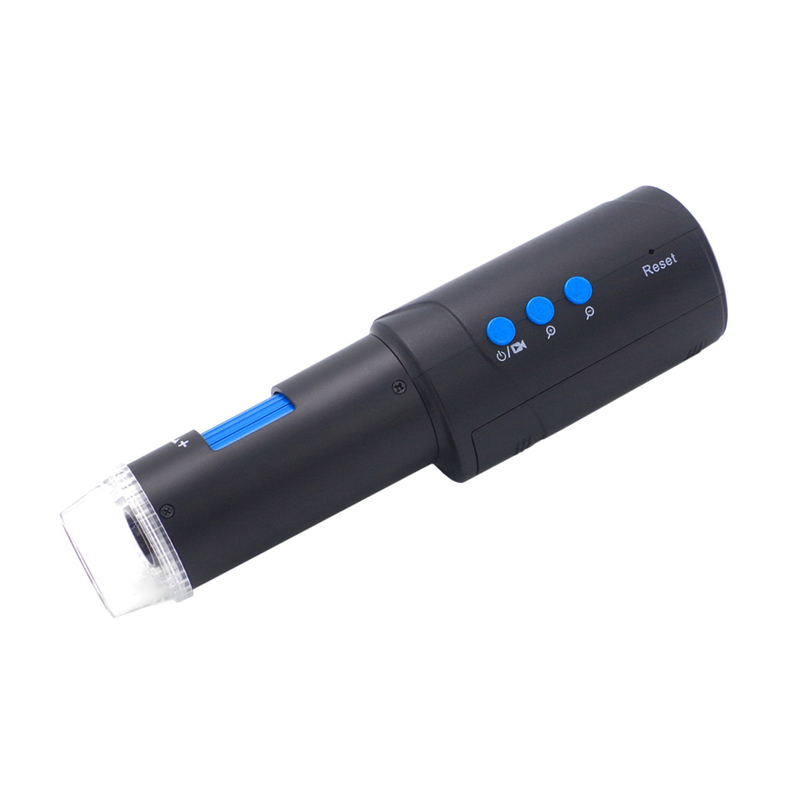

Skin Detection UV 400nm Wireless Usb Microscope For Mobile 1920x1080

Product Details:
Place of Origin: China
Brand Name: Toproview/Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM023B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Product Name: DM023B UV Wireless Microscope Dimmable Illumination: 4pcs UV LED+4pcs White LED
Application: Textile Illumination: LED Illumination
Image Sensor: 2 Mega Pixels Warranty: 1 Year,One Year
High Light:

UV 400nm Wireless Usb Microscope FCC

,

1920x1080 Wireless Usb Microscope FCC

,

UV 400nm Usb Microscope For Mobile

Product Description



Skin Detection Purple UV 400nm Portable Digital Microscope 200x Magnification



Quick Details

* 2022 New released UV Wirelss Digital Microscopes are with UV light sources, which do the great job for beauty solon, hair transplant industry etc.,

Main Features

With replaceable 18650 battery to get the longer service life for the UV microscope.

* With replaceable and rechargeable battery, 18650 lithium-Ion battery 2000mAh. Support continue working up to 2.5 hours.

* Supported operation systems for computer is Windows 7/8/10,macOS 11.2.1 or above. No matter you are working with your Windows notebook, laptop or apple Macbook, you will make it easy to work with the microscope. The attached software is also with the powerful measurement function, you can not only take some capture, video but also allow to do some measurement and text record.

SPECIFICATION

MODEL

Model Name

DM023B



Connection

WiFi to smart devices; USB 2.0 to PC

OPTICS

UV light

Yes



Magnification

Real 10x~200x



Lens type

Optical glass



Focus range

Manual focus 0~110mm(with stand)



Illumination

8 adjustable LEDs(white + purple)

SENSOR

Sensor type

CMOS



Size

2 megapixel



Resolution

1920*1080



Max.Frame rate

25 fps at 2MP output

FEATURES

APP

TopScope Pro for iOS/Android (customizable)



Software

DigiCapture Pro for Windows/MacOS (customizable)



Measurement function(PC Software)

Yes



Supported operation systems
(Smart device)

iOS 12.0 or later Android 4.2 or later



Supported operation systems
(Computer)

Windows 7/8/10macOS 11.2.1 or above



Capturing by microscope

Yes with recording button on microscope



Recording by microscope

Yes with digital zoom button on microscope



Certification

CE/FCC/RoHS

REPLACEABLE BATTERY

18650 Lithium-Ion Battery

2000mAh rechargeable and replaceable



Battery working time

Continue working for 2.5 hours



Charging time

2.5hrs (when WiFi Digital Microscope power off)

PHYSICAL

Body dimensions

16.6*4.5*4.0cm



Gross weight

0.2kg

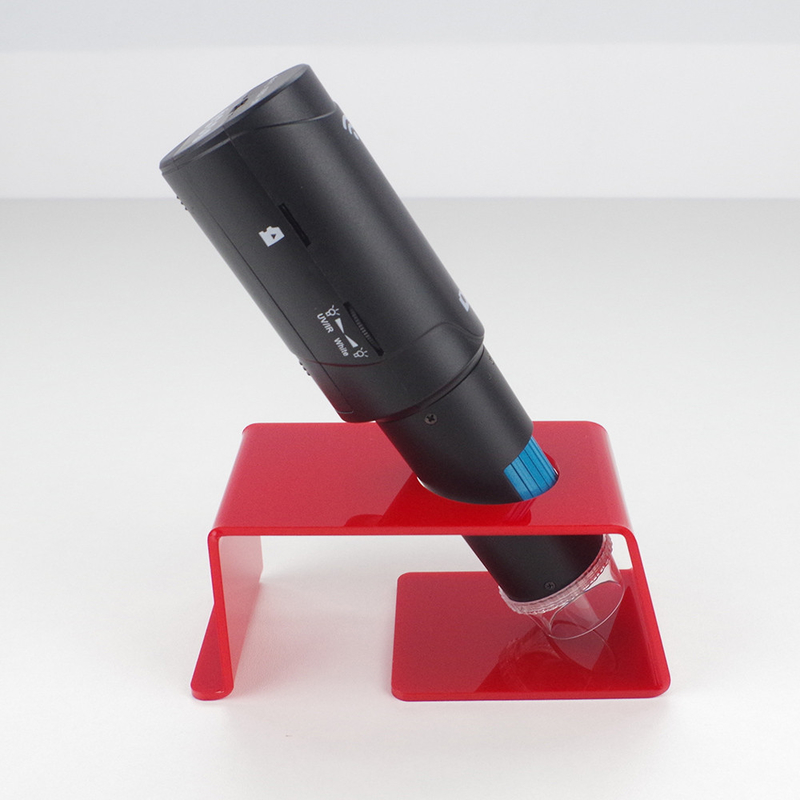

Stand

metal stand for neutral product; support to customize





APPLICATIONS

* DM023B UV Wireless Digital Microscope with wide application field: Skin dermatoscope hair scalp trichology crime investigations research and scientific analysis education forensics graphology mineralogy etc.,
