Shenzhen Toproview Technology Co., Ltd

0.3MP Usb 2.0 Digital Microscope Software Mac 640X480 Jewelry Inspection

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE/FCC/RoHS
Model Number: DM022A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 16pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM022A Photo And Video Resolution: 640*480 / 320*240
Focus Range: From 0mm To 55mm On Metal Stand Max.Frame Rate: 30 Fps At 0.3MP Output
PC Software With Professional Measurement: Yes Brand Name: Toproview / Neutral / Customization
High Light:

0.3MP Usb 2.0 Digital Microscope


640X480 Digital Microscope Software


Digital Microscope Software Mac Usb 2.0

Product Description

0 . 3 Million Pixels 10 To 150x Magnification USB Digital Microscope For Jewelry Inspection


1: 8 LED lights provide excellent detail and optimal clarity, and brightness of the LED light is adjustable with which you can see what you want to view more observe and clearer,the LED light is soft and not dazzling across the object being viewed.

2: Taking an image or video is as simple as clicking the PC software.


Product Specification:

Model Model Name DM022A
Features Connection USB 2.0 to PC
Image Sensor 0.3 Megapixel 1/6.5" CMOS Image Sensor
Photo And Video Resolution 640*480 / 320*240
Magnification Ratio Real 10x~150x(Based On 21 inch Display)
Max.Frame Rate 30 fps at 0.3MP Output
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 55mm on metal stand
Lens Type Optical Glass
Advantage Switchable Polarizer Yes
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Focus Mode Manual Continuous Focus
Warranty 1 Year
Software PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7 / 8 / 10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB cable,calibration ruler,metal stand
Body Dimension 110x35x25mm
Gross Weight 0.06KG
Gift Box 22*16*9cm
Gross Weight 0.6KG
Carton Box 46.5*33*37.5cm
Gross Weight 10.5KG
Carton 16Pcs


Product Advantages:

1: This electronic microscope is a very interesting thing for parents, adults, teachers, students, kids, children, collectors, testers, electronics repair folks and inquisitive folks who are interested in exploring the microscopic world, textile, jewelry, stamp, skin, hair, scalp, coin, plant trichomes, and so on.


Product picture:

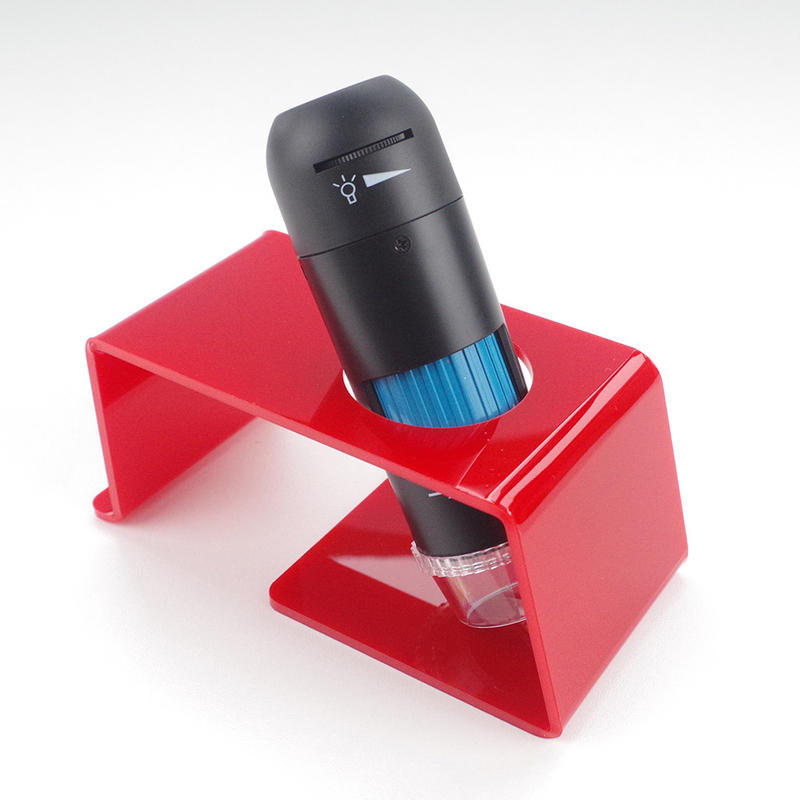

0.3MP Usb 2.0 Digital Microscope Software Mac 640X480 Jewelry Inspection 0

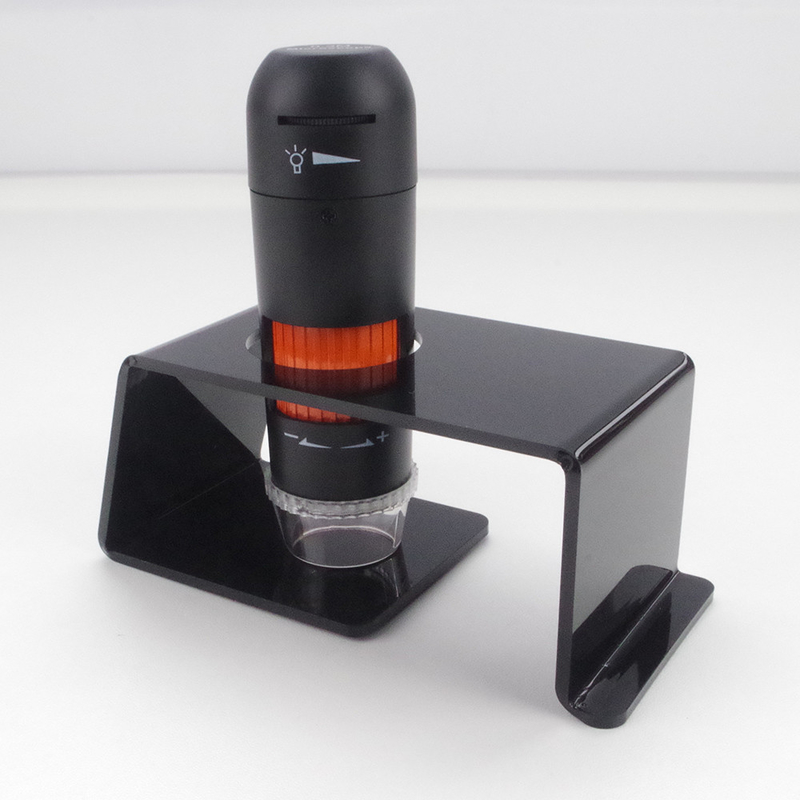

0.3MP Usb 2.0 Digital Microscope Software Mac 640X480 Jewelry Inspection 1
