Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023A
Contact Us

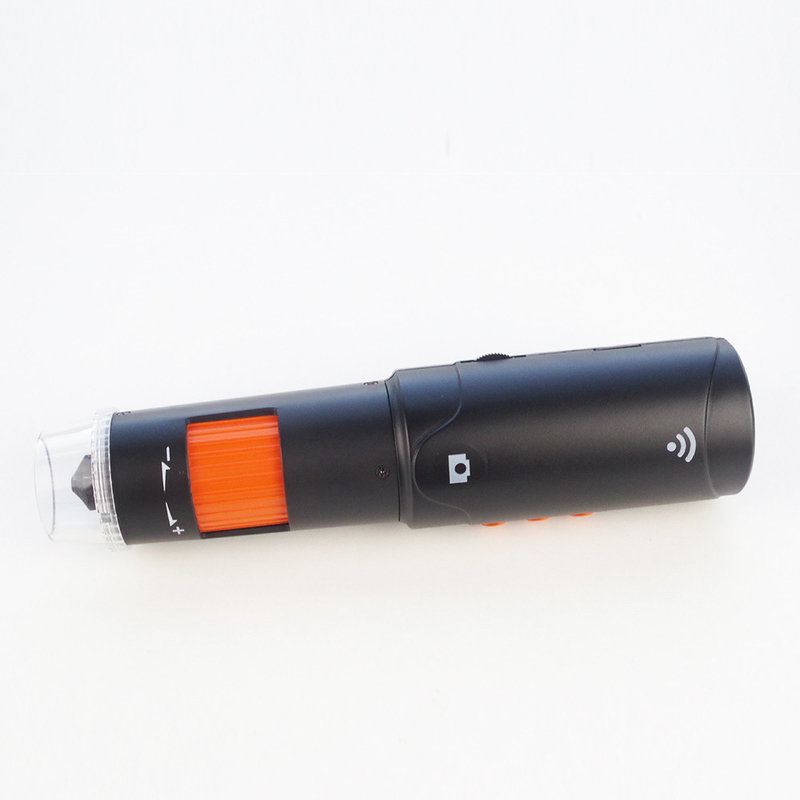

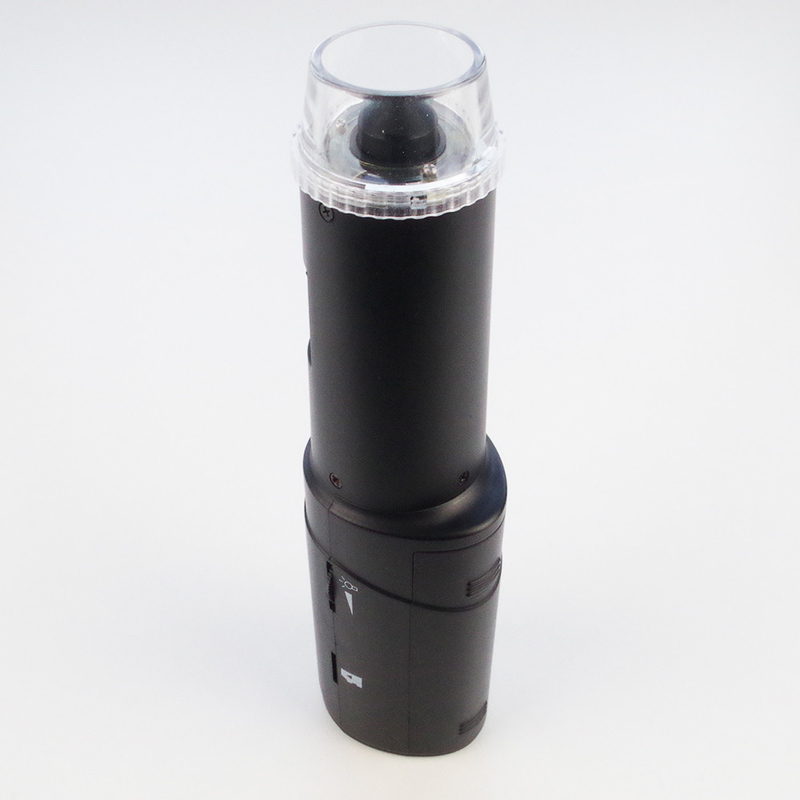

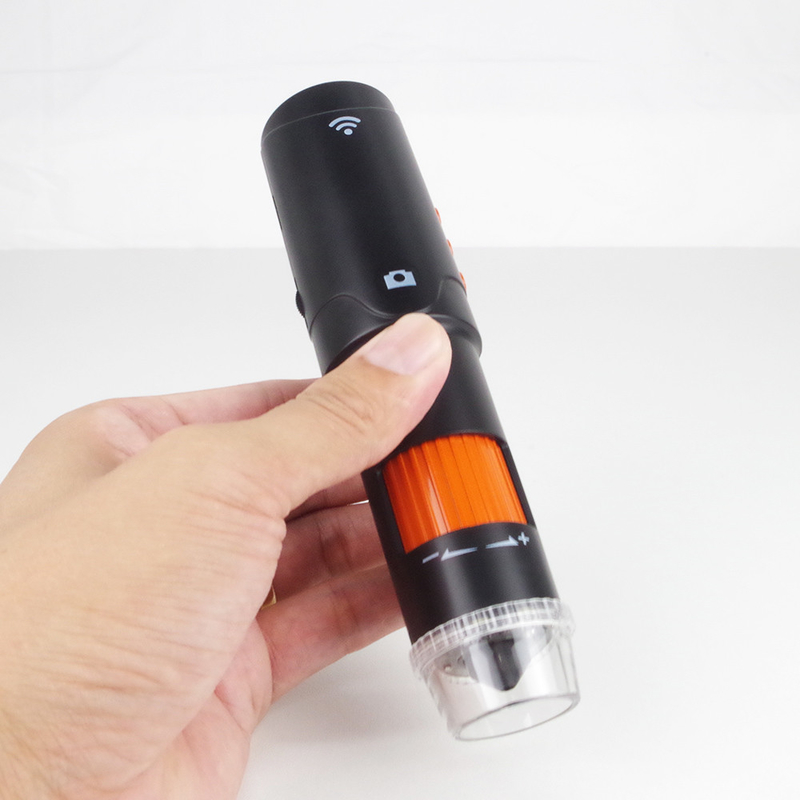

Polarizerd Skin Analyzer Device for Skin Diagnosis Professional Home Use Kiosk Use
SKIN ANALYZER DESCRIPTION
Main Features
With touch area on the microscope body to take the captures, which can avoid shaking by pressing and get the high quality captured images.
WIRELESS MEANS MORE - 'Cut the cord' and use a digital microscope in clinics, machine shops, in the field, under the hood, or anywhere your work takes you.
A polarized dermatoscope offers specialized lighting which automatically eliminates the glare created from the reflection of the skin, and thus removes the need for the application of a liquid medium to the skin for each imaging session.
SKIN ANALYZER SPECIFICATION
|
MODEL |
Model Name |
DM023A |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Frame rate |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later, Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10,macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes, with recording button on microscope |
|
|
Recording by microscope |
Yes, with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Metal stand for neutral product; support to customize |
APPLICATION
Wide application field: Industrial and electronic inspectin, Skin Dermatoscope, Hair Scalp Trichology, Research and scientific analysis, Education forensics, Textile inspection, Print inspection, Collectibles, Jewelry and watch repair etc.,
PRODUCT ADVANTAGE
* New technology for USB digital microscope - microscope with polarizer. When used with the polarizer, users are able to detect mechanical stress, as well as identify optically anisotropic materials. Toproview polarizing microscopes are used in a wide range of fields, including forensics, manufacturing, health, mineralogy, research, and biology.
FAQ
Q: Do you offer custom solution?
Toproview: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements. OEM&ODM order are welcome.
Q:Why choose Toproview microscopes?
Toproview: Professional yet affordable
