Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023A
Contact Us

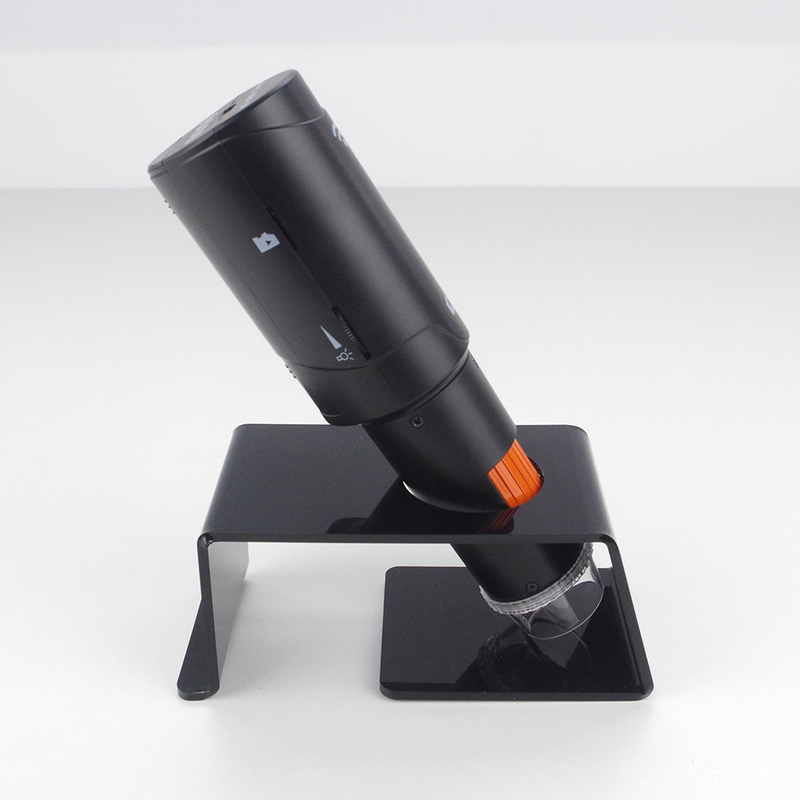

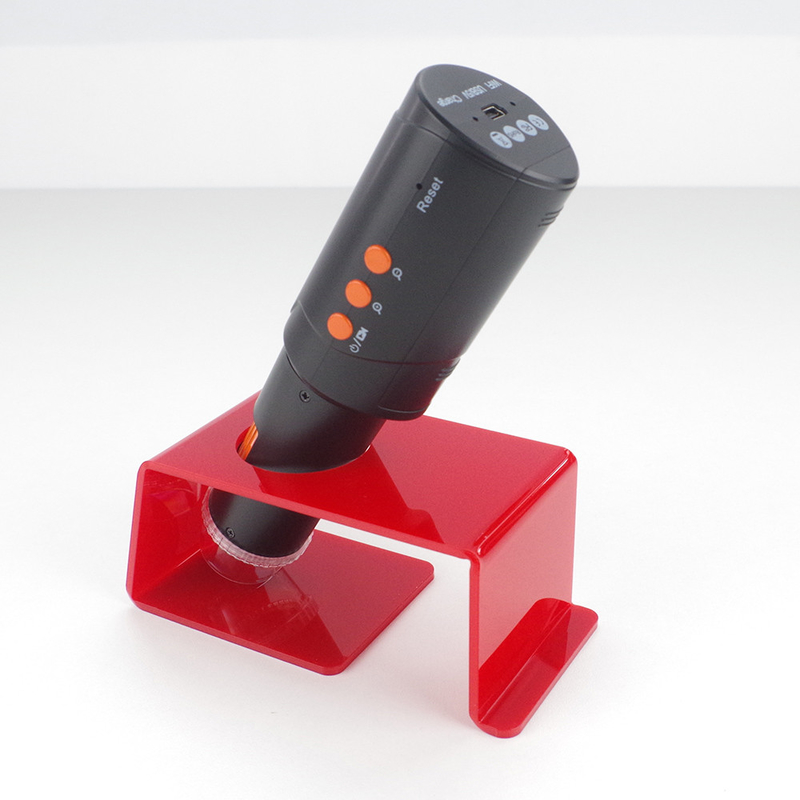

10x~200x Polarizer WiFi Portable Digital Microscope for Mobile and PC with Lithium-ion Battery
Quick Details
*2022 New released Toproview Wirelss Digital Microscopes DM023A are built-in adjustable polarizer, allows to freely remove the unwanted reflection or glare from the object surface for a better contrast. With main features 200x magnification, 2MP resolution, replaceable 18650 battery, microtouch area for capturing.
Main Features
With polarizer to filter the reflection on objection’s surface
With replaceable 18650 battery to get the longer service life for the product
With touch area on the microscope body to take the captures, which can avoid shaking by pressing and get the high quality captured images.
* 8 white LED Build in, with adjustable lightness diammer.
* Max. Frame is up to 25 fps at the highest resolution 2MP, that means you will get the smooth video even in the high resolution without any stuck and stop;
* Support to output through WiFi and USB connection, which is with the wonderful compatibility with smart devices like iPhone, iPad, Android; Windows computer; Macbook etc.,
SPECIFICATION
| MODEL | Model Name | DM023A |
| Connection | WiFi to smart devices; USB 2.0 to PC | |
| OPTICS | Polarizer | Yes |
| Magnification | Real 10x~200x | |
| Lens type | Optical glass | |
| Focus range | Manual focus 0~110mm(with stand) | |
| Illumination | 8 adjustable white LED | |
| SENSOR | Sensor type | CMOS |
| Size | 2 megapixel | |
| Resolution | 1920*1080 | |
| Max.Frame rate | 25 fps at 2MP output | |
| FEATURES | APP | TopScope Pro for iOS/Android (customizable) |
| Software | DigiCapture Pro for Windows/MacOS (customizable) | |
| Measurement function(PC Software) | Yes | |
| Supported operation systems (Smart device) |
iOS 12.0 or later, Android 4.2 or later | |
| Supported operation systems (Computer) |
Windows 7/8/10,macOS 11.2.1 or above | |
| Capturing by microscope | Yes, with recording button on microscope | |
| Recording by microscope | Yes, with digital zoom button on microscope | |
| Certification | CE/FCC/RoHS | |
| REPLACEABLE BATTERY | 18650 Lithium-Ion Battery | 2000mAh rechargeable and replaceable |
| Battery working time | Continue working for 2.5 hours | |
| Charging time | 2.5hrs (when WiFi Digital Microscope power off) | |
| PHYSICAL | Body dimensions | 16.6*4.5*4.0cm |
| Gross weight | 0.2kg | |
| Stand | Metal stand for neutral product; support to customize |
PRODUCT ADVANTAGE
* Microscopes with polarizers are a crucial tool to modulate light and use it to study materials in many different ways. Toproview polarizing digital microscopes have been designed to reduce glare, view subsurface layers, and improve image contrast.
