Shenzhen Toproview Technology Co., Ltd

Wireless FCC 1080P Usb C Microscope For Jewelry Inspection IPhone IPad

Product Details:
Place of Origin: China
Brand Name: Toproview/Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM023A
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: $48~$75/pc
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM023A Polarizer Wireless Microscope Image Sensor: CMOS Image
Magnification: Real 200x Application: Print Roller Inspection
Color: Black Material: Led,ABS,Glass,acrylic
High Light:

FCC 1080P Usb C Microscope

,

Toproview Usb C Microscope for IPhone

,

usb2.0 Microscope For Jewelry Inspection FCC

Product Description



200x 1080P Portable Digital Microscope Wireless for iPhone iPad



Quick Details

*2022 New released Toproview Wirelss Digital Microscopes DM023A are built-in adjustable polarizer, allows to freely remove the unwanted reflection or glare from the object surface for a better contrast. With main features 200x magnification, 2MP resolution, replaceable 18650 battery, microtouch area for capturing.

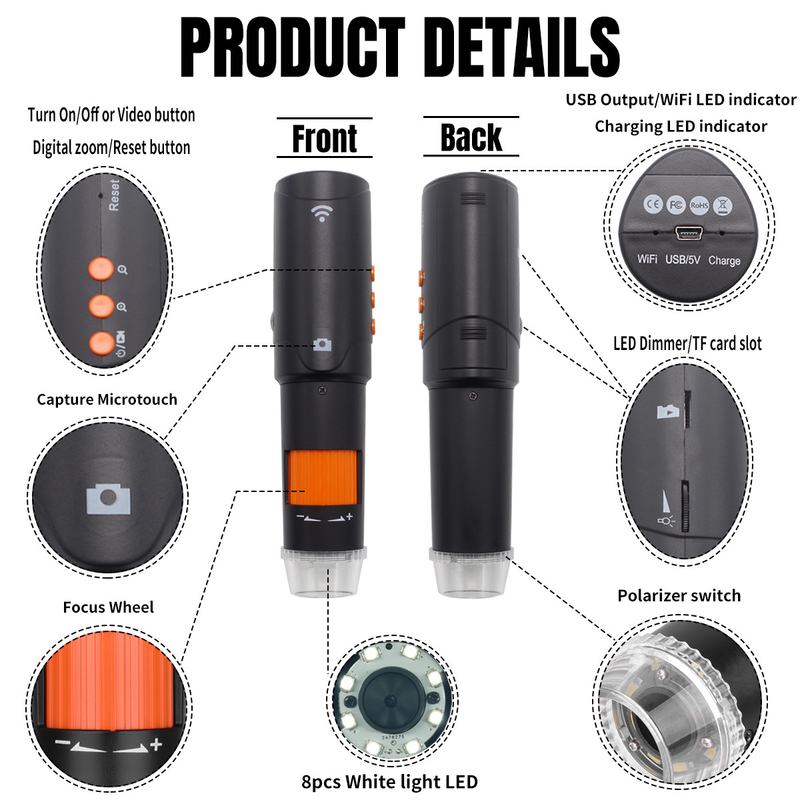

Main Features

With polarization filter to check reflective surface

With rechangeasble 18650 battery, you can change the battery easiliy and make your microscope the longer working life.

* Optional photo and video resolution is with FHD(1920*1088)/HD(1280*720)/VGA(864*480), which are available on both smart devices like iPhone, iPad, Android phone, and computer(Windows and Macbook).

* Max. Frame is up to 25 fps at the highest resolution 2MP, that means you will get the smooth video even in the high resolution without any stuck and stop.



SPECIFICATION

MODEL Model Name DM023A
  Connection WiFi to smart devices; USB 2.0 to PC
OPTICS Polarizer Yes
  Magnification Real 10x~200x
  Lens type Optical glass
  Focus range Manual focus 0~110mm(with stand)
  Illumination 8 adjustable white LED
SENSOR Sensor type CMOS
  Size 2 megapixel
  Resolution 1920*1080
  Max.Frame rate 25 fps at 2MP output
FEATURES APP TopScope Pro for iOS/Android (customizable)
  Software DigiCapture Pro for Windows/MacOS (customizable)
  Measurement function(PC Software) Yes
  Supported operation systems
(Smart device)
iOS 12.0 or later, Android 4.2 or later
  Supported operation systems
(Computer)
Windows 7/8/10,macOS 11.2.1 or above
  Capturing by microscope Yes, with recording button on microscope
  Recording by microscope Yes, with digital zoom button on microscope
  Certification CE/FCC/RoHS
REPLACEABLE BATTERY 18650 Lithium-Ion Battery 2000mAh rechargeable and replaceable
  Battery working time Continue working for 2.5 hours
  Charging time 2.5hrs (when WiFi Digital Microscope power off)
PHYSICAL Body dimensions 16.6*4.5*4.0cm
  Gross weight 0.2kg
  Stand Metal stand for neutral product; support to customize



PRODUCT ADVANTAGE

* The MicroTouch feature is a touch sensitive trigger area on the body of the microscope that can be used to trigger an image capture. Different from the old and traditional way, we use the “touch” technology instead of “press” button to avoid the vague captures by hand shaking.

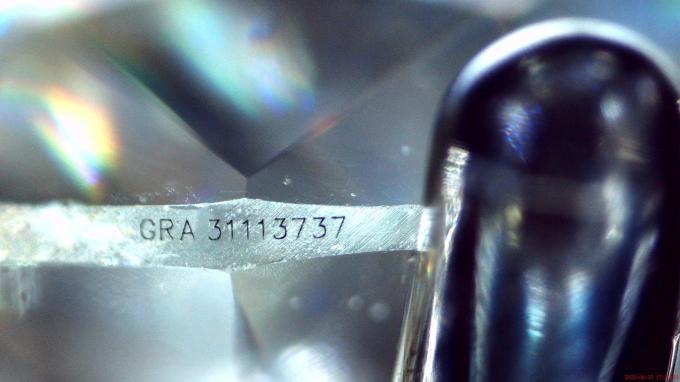

Diamond Captured Photo Taken by Toproview Product after adjusting polarizer.

GIA code is visible and clear.

Wireless FCC 1080P Usb C Microscope For Jewelry Inspection IPhone IPad 0

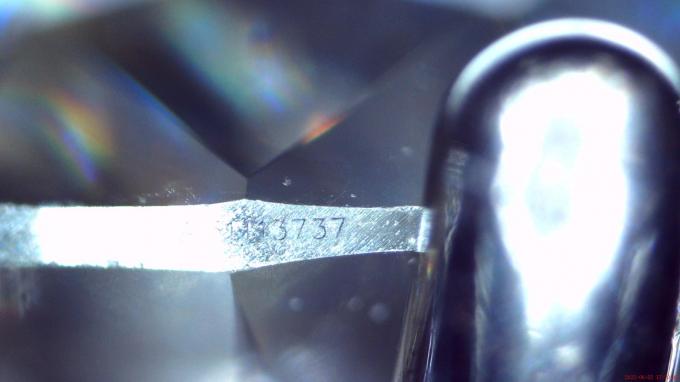

Diamond Captured Photo Taken by Toproview Product before adjusting polarizer.

GIA code is with relective light and not easy to see clear, which is also the main shortage for other similar microscope in the market.

Wireless FCC 1080P Usb C Microscope For Jewelry Inspection IPhone IPad 1
