Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023A
Contact Us
Video
Wireless USB Microscope with APP Downloaded to Mobilephone
WIRELESS DIGITAL MICROSCOPE DESCRIPTION
Quick Details

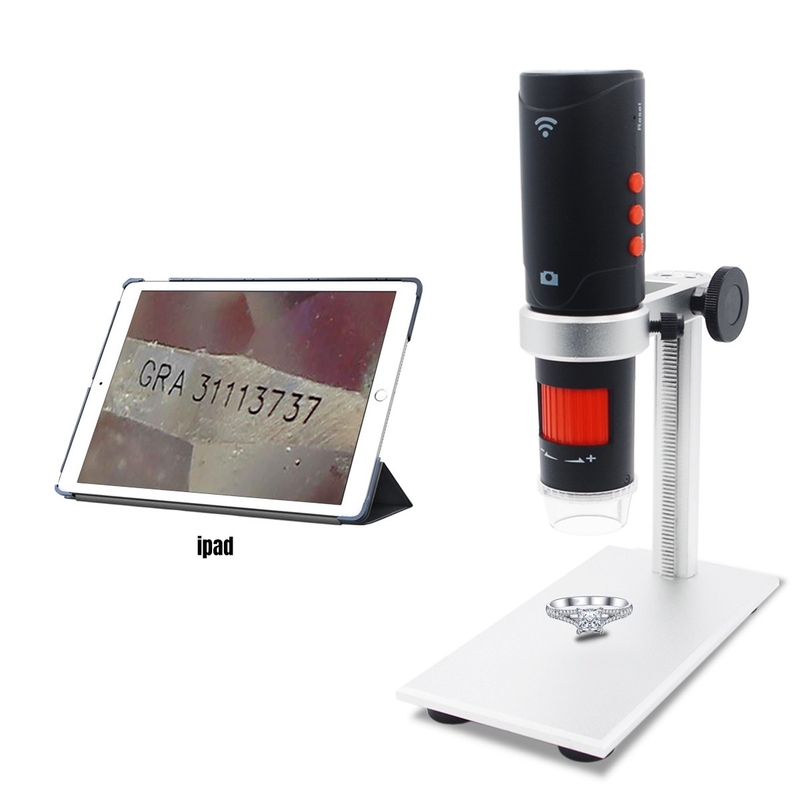

2022 New released Toproview Wirelss Digital Microscopes DM023A are built-in adjustable polarizer, allows to freely remove the unwanted reflection or glare from the object surface for a better contrast. With main features 200x magnification, 2MP resolution, replaceable 18650 battery, microtouch area for capturing.
Main Features

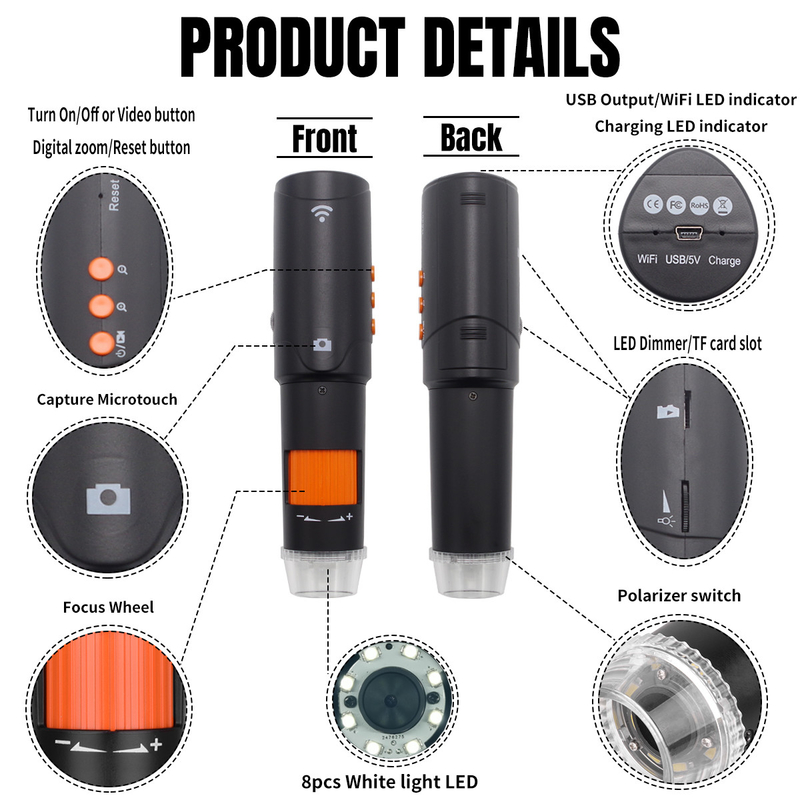

With touch area on the microscope body to take the captures, which can avoid shaking by pressing and get the high quality captured images.
* Supported operation systems for computer is Windows 7/8/10,macOS 11.2.1 or above. No matter you are working with your Windows notebook, laptop or apple Macbook, you will make it easy to work with the microscope. The attached software is also with the powerful measurement function, you can not only take some capture, video but also allow to do some measurement and text record.
WIRELESS DIGITAL MICROSCOPE SPECIFICATION
|
MODEL |
Model Name |
DM023A |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Fr |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later, Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10,macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes, with recording button on microscope |
|
|
Recording by microscope |
Yes, with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Metal stand for neutral product; support to customize |
PRODUCT ADVANTAGE
Microscopes with polarizers are a crucial tool to modulate light and use it to study materials in many different ways. Toproview polarizing digital microscopes have been designed to reduce glare, view subsurface layers, and improve image contrast.
(captured by Toproview DM023A)
Scalp inspection after polarizing Scalp inspection before polarizing
Coin inspection after polarizing Coin inspection before polarizing
FAQ
Q: Do you offer custom solution?
Toproview: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements. OEM&ODM order are welcome.
Q:Why choose Toproview microscopes?
Toproview: Developed for professionals yet economical for consumer or casual use
