Shenzhen Toproview Technology Co., Ltd

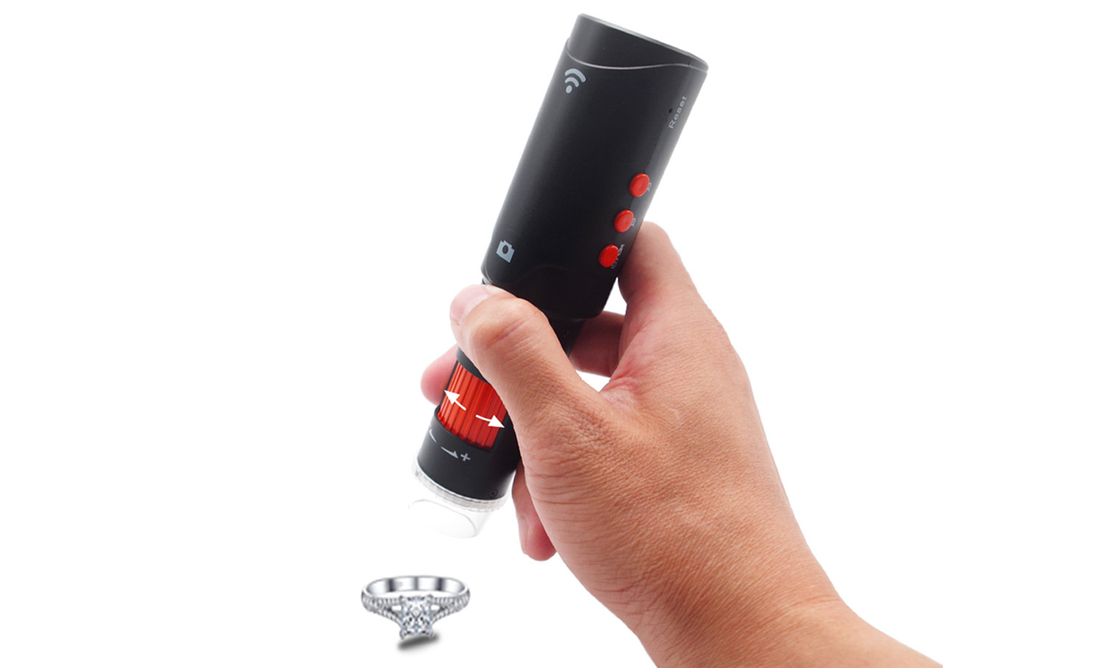

Toproview DM023A Digital Wireless Microscope CMOS Image Sensor With Polarizing Filter

Product Details:
Place of Origin: China
Brand Name: Toproview/Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM023A
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: $48~$75/pc
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model: DM023A OEM: YES
Adjustable Magnification:: 10x~200x Image Sensor:: 1/3" CMOS Image Sensor
Sensor Resolution:: 2M Pixels Name: Wireless Digital Microscope
High Light:

CMOS Sensor digital wireless microscope

,

2M pixels digital wireless microscope

,

Polarizing Filter Wireless Digital Microscope

Product Description

Digital Microscope with Polarizing Filter by Toproview DM023A



All of Toproview digital microscopes are built-in adjustable polarizer, allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.

We support to offer no matter neutral products, OEM products or ODM services, come to us with your requirement and we will offer what you need!



PRODUCT ADVANTAGE

* The MicroTouch feature is a touch sensitive trigger area on the body of the microscope that can be used to trigger an image capture. Different from the old and traditional way, we use the “touch” technology instead of “press” button to avoid the vague captures by hand shaking.

* Microscopes with polarizers are a crucial tool to modulate light and use it to study materials in many different ways. Toproview polarizing digital microscopes have been designed to reduce glare, view subsurface layers, and improve image contrast.





SPECIFICATION

MODEL

Model Name

DM023A



Connection

WiFi to smart devices; USB 2.0 to PC

OPTICS

Polarizer

Yes



Magnification

Real 10x~200x



Lens type

Optical glass



Focus range

Manual focus 0~110mm(with stand)



Illumination

8 adjustable white LED

SENSOR

Sensor type

CMOS



Size

2 megapixel



Resolution

1920*1080



Max.Frame rate

25 fps at 2MP output

FEATURES

APP

TopScope Pro for iOS/Android (customizable)



Software

DigiCapture Pro for Windows/MacOS (customizable)



Measurement function(PC Software)

Yes



Supported operation systems
(Smart device)

iOS 12.0 or later, Android 4.2 or later



Supported operation systems
(Computer)

Windows 7/8/10,macOS 11.2.1 or above



Capturing by microscope

Yes, with recording button on microscope



Recording by microscope

Yes, with digital zoom button on microscope



Certification

CE/FCC/RoHS

REPLACEABLE BATTERY

18650 Lithium-Ion Battery

2000mAh rechargeable and replaceable



Battery working time

Continue working for 2.5 hours



Charging time

2.5hrs (when WiFi Digital Microscope power off)

PHYSICAL

Body dimensions

16.6*4.5*4.0cm



Gross weight

0.2kg



Stand

Metal stand for neutral product; support to customize



APPLICATION



  • Industrial and electronic inspectin
  • Skin Dermatoscope
  • Hair Scalp Trichology
  • Research and scientific analysis
  • Education forensics
  • Textile inspection
  • Print inspection
  • Collectibles
  • Jewelry and watch repair etc.,







Toproview DM023A Digital Wireless Microscope CMOS Image Sensor With Polarizing Filter 0Toproview DM023A Digital Wireless Microscope CMOS Image Sensor With Polarizing Filter 1

FAQ

Q: Can you accept OEM or ODM?

A: Yes, OEMand ODM are welcome. We have the fully ability to customize any design, shape and size as per customer’s specific requirements.

Q: What certificate do you have?

A: For all products we supply CE, FCC, RoHs.

Q: Warranty

A: Usually 1 year, we offer after sale service no matther how long.
