Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023A
Contact Us
Video

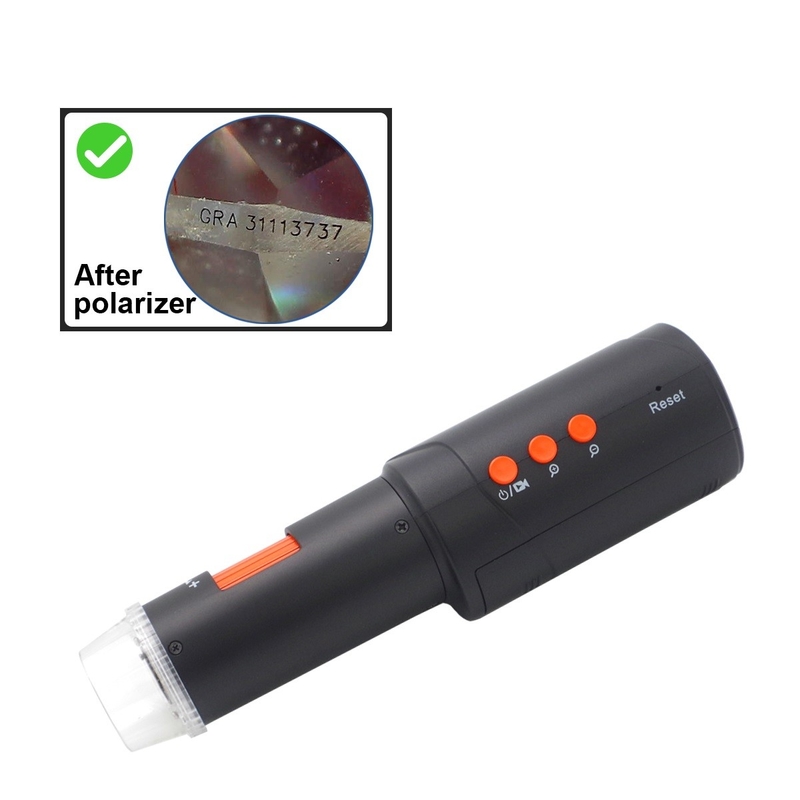

Polarizing Wireless Digital Microscope for PCB Reparing Jewelry Inspection
WIRELESS DIGITAL MICROSCOPE DESCRIPTION
Quick Details

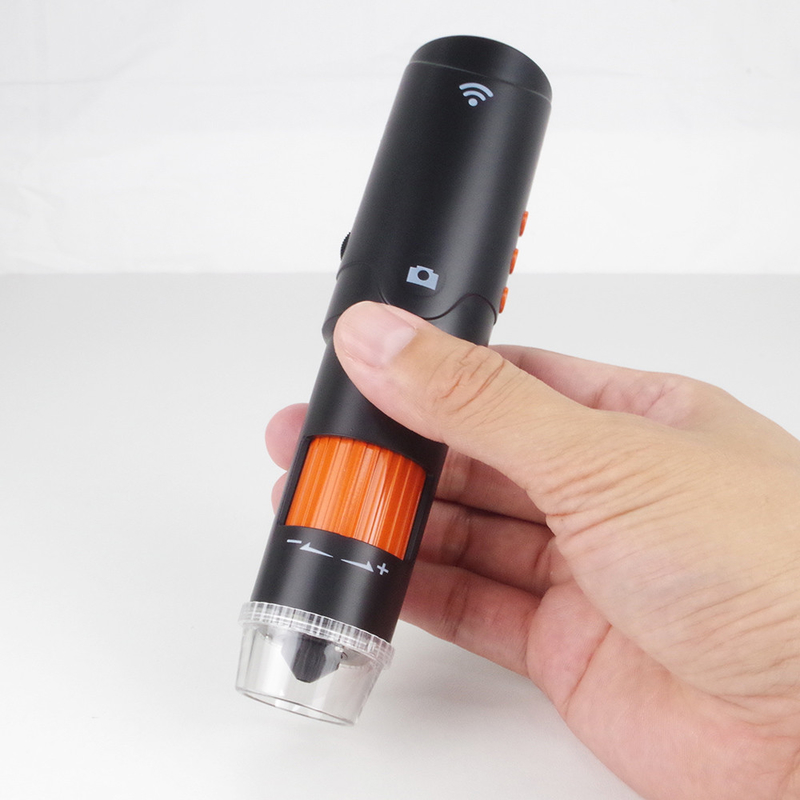

DM023A portable digital microscope, which is without cable needed and allows users to carry to use anywhere, to capture image content and storage easily for reference. It enhances the users’ experience, especially for collectinghobby. Such as: coins, stamps and antique collectors and lab engineer, children's microscopic experience exploration tools.
Main Features
With replaceable 18650 battery to get the longer service life for the product.
* Optional image and video resolution: 1080P, 720P, VGA
WIRELESS DIGITAL MICROSCOPE SPECIFICATION
|
MODEL |
Model Name |
DM023A |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |

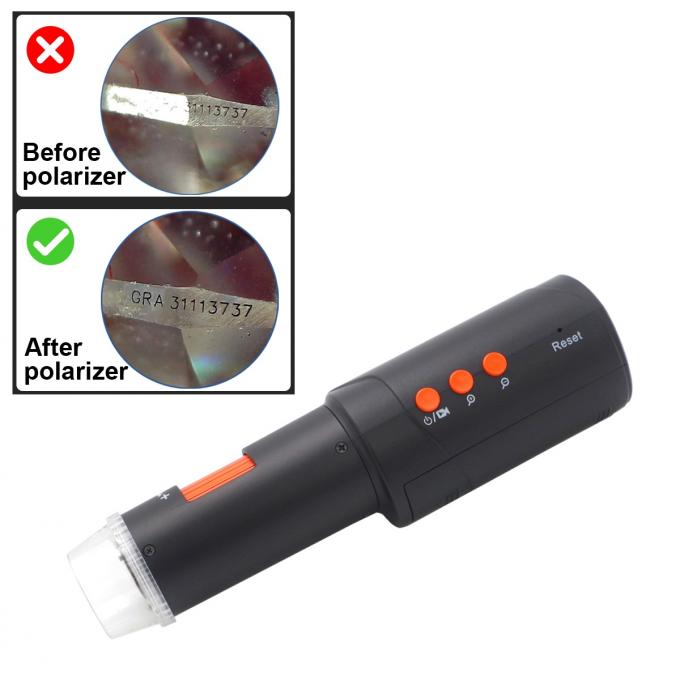

Polarizer |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Fr |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later, Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10,macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes, with recording button on microscope |
|
|
Recording by microscope |
Yes, with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Metal stand for neutral product; support to customize |
PACKING WAYS
Neutral product with individual box, 16pcs per carton.
According to export standard packing.
WIRELESS DIGITAL MICROSCOPE APPLICATION

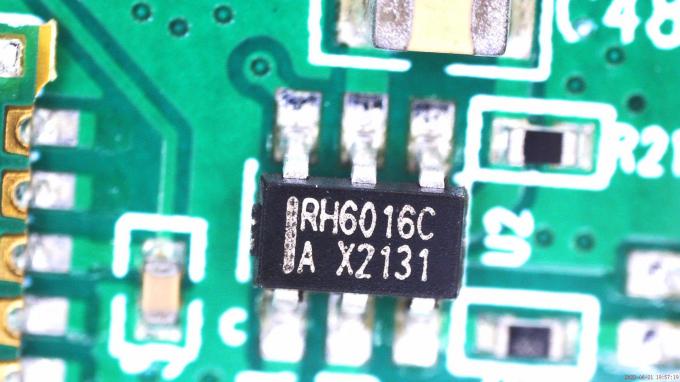

Wide application field: Industrial and electronic inspectin, Skin Dermatoscope, Hair Scalp Trichology, Research and scientific analysis, Education forensics, Textile inspection, Print inspection, Collectibles, Jewelry and watch repair etc.,
