Shenzhen Toproview Technology Co., Ltd

1080P WIFI Digital Microscope Compatible With IPhone Android 1280x720

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE/FCC/RoHS
Model Number: DM023A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 20pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM023A Polarizer: Yes
Magnification: Real 10x~200x(Based On 24 Inch Display) Resolution: 1920*1088 / 1280*720 / 864*480
Brand Name: Toproview / Neutral / Customization Customized Support: OEM / ODM / OBM
High Light:

FCC 1080P WIFI Digital Microscope


1280x720 WIFI Digital Microscope


FCC Microscope Compatible With iPhone 1280x720

Product Description

1080P HD WIFI Digital Microscope Compatible With iPhone Android iPad Windows Mac Computer


1: The WIFI Digital Microscope with the "microtouch" on microscope body for capture, which will easy to operate to take the clear picture.

2: TopScope Pro APP Supported Operation Systems iOS and Android ,APP Supported Operation Systems iOS 12.0 or later, Android 4.2 or later.


Product Specification:

Model Model Name DM023A
Features Connection WiFi to Smart Devices / USB 2.0 to PC
Image Sensor 2 Megapixel CMOS
Photo And Video Resolution 1920*1088/1280*720/864*480
Magnification Ratio Real 10x~200x(Based On 24 inch Display)
Max.Frame Rate 25 fps at 2MP Output
LED Brightness Adjustable Yes
Focus Range From 0mm to 110mm
Lens Type Optical Glass
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Advantage Switchable Polarizer Yes
Capture Microtouch On Microscope Yes
Recording Button On Microscope Yes
Digital Zoom Button On Microscope Yes
Rechargeable And Replaceable Battery 2000mAh 18650 Lithium-Ion
Battery Working Time Continue working for 2.5 hours
Charging Time 2.5hrs (When WiFi Digital Microscope Power Off)
SD Card Slot Support SD Card Storage Up To 32G (Not Included In The Neutral Package)
Warranty 1 Year
Software APP for Smart Devices Topscope Pro (Customizable)
APP Supported Operation Systems iOS 12.0 or later, Android 4.2 or later
APP Supported Photo And Video Recording Yes
APP Supported Battery Capacity Display Yes

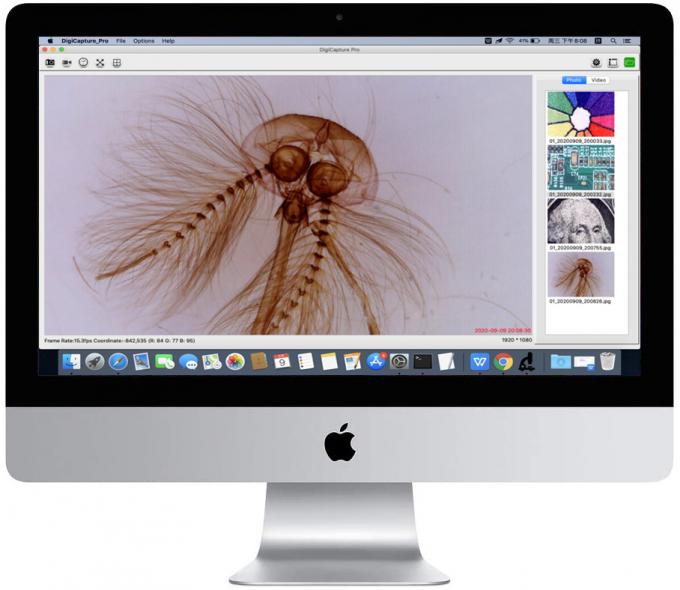

PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7/8/10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB cable,replaceable battery,calibration ruler,metal stand,Quick Start Guide
Body Dimension 16.6*4.5*4.0cm
Gross Weight 0.2KG


Product Advantages:

1: The WiFi digital microscope support video recording by itself is very suitable for IQC inspection.

2: The WiFi microscope With 8 PCS LED brightness adjustable is helpful for circuit board testing.

3: Microscope is the portable mini tool , it is the popular and meaningful gift for children, students.


Product picture:

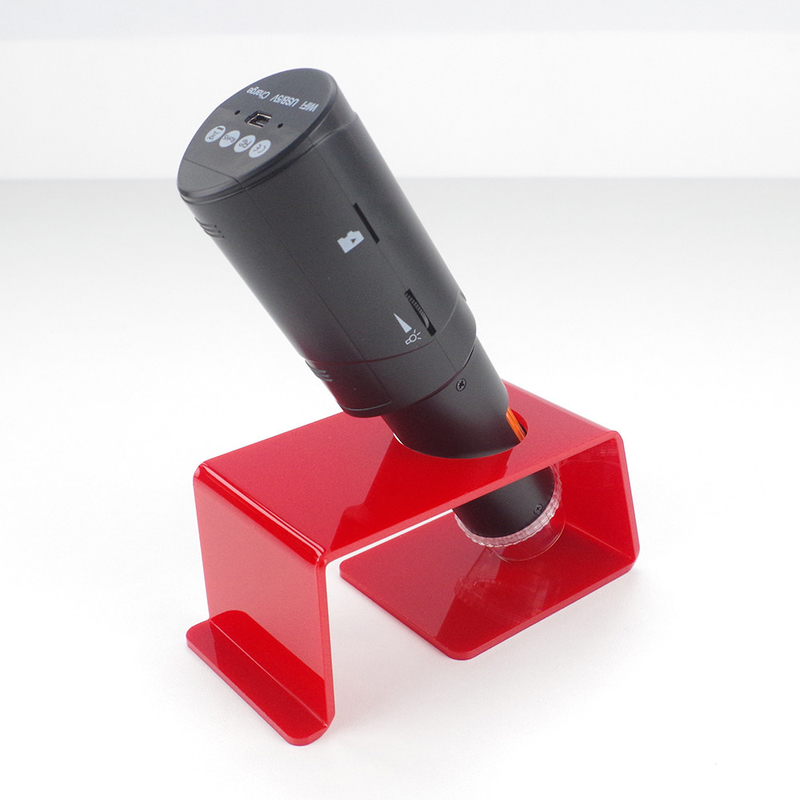

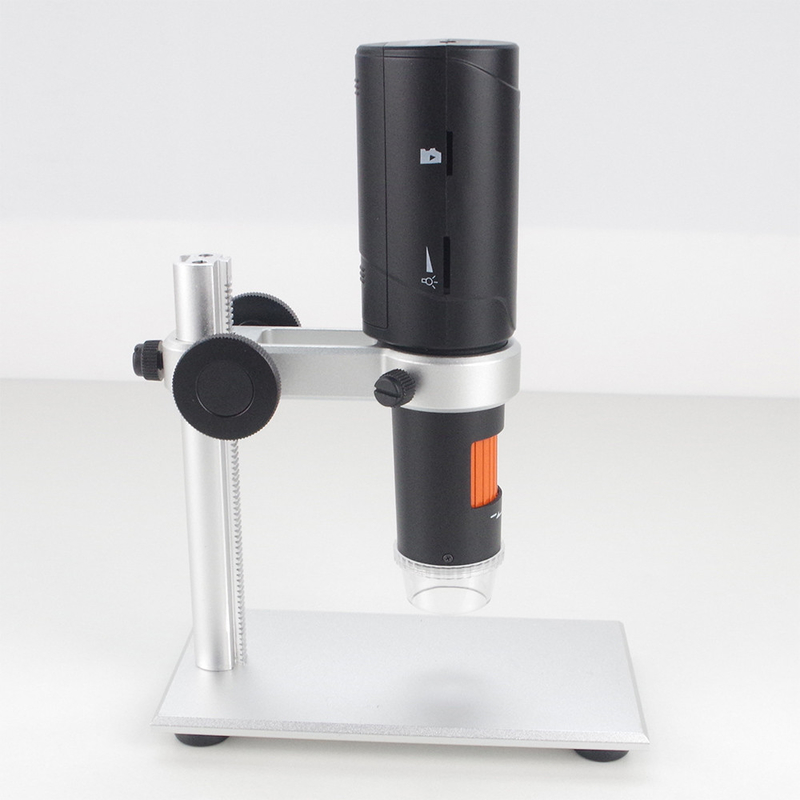

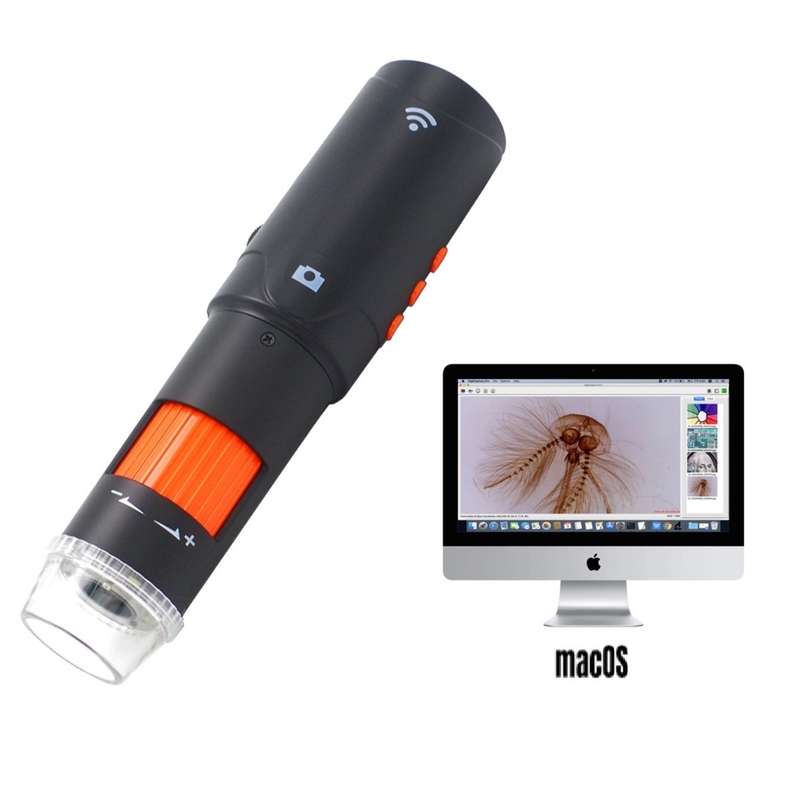

1080P WIFI Digital Microscope Compatible With IPhone Android 1280x720 0
