Shenzhen Toproview Technology Co., Ltd

Mineralogy Handheld LCD Digital Microscope For Pcb Repair Polarizer

Product Details:
Place of Origin: China
Brand Name: Toproview/Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM042
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 68~80
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Screen Size: 4.3 Inch Polarizer Built-in: Yes
Max.resolution By Digital Zoom: 12MP Magnification On 21''monitor: 10x~250x
Max.magnification By Digital Zoom: 1200x Connection Type: USB 2.0 To PC/HDMI Port To Monitor/TV Port To Monitor
High Light:

Mineralogy Handheld LCD Digital Microscope

,

Polarizer LCD Digital Microscope

,

Digital Microscope For Pcb Repair Polarizer

Product Description

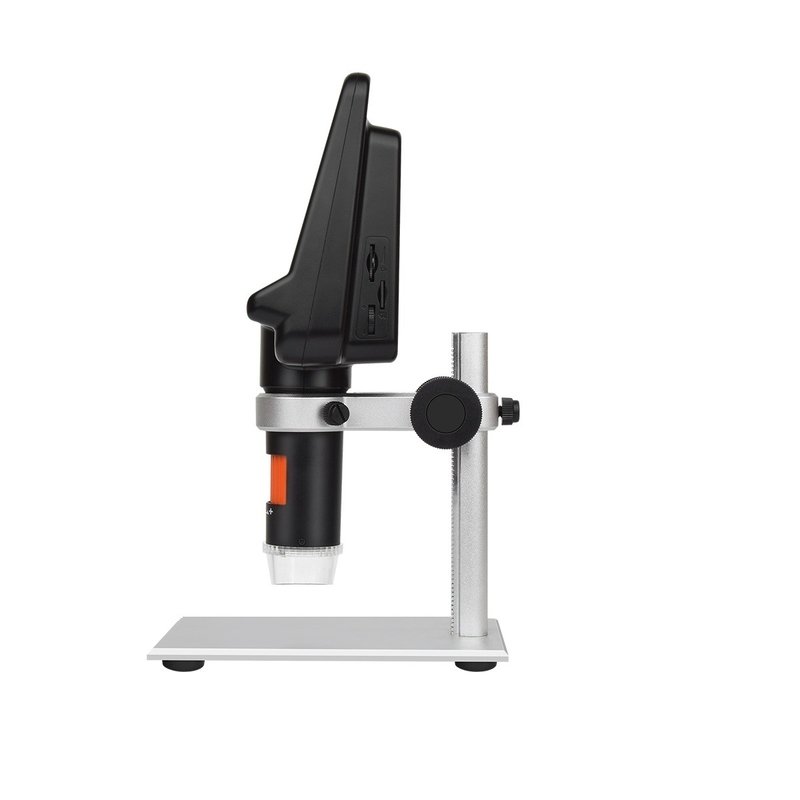

Handheld LCD Digital Microscope with Polarizer for Metal Inspection



LCD DIGITAL MICROSCOPE DESCRIPTION

DM042 is the polarizer type LCD digital microscopes that with high resolution and multiple output methods for various applications. It supports for 4 kinds of connection: live viewing, capture, recording by the device itself; through HDMI cable to output live into HDMI monitor; through TV cable to output live into TV monitor; through USB cable connecting to Windows, Mac computes or laptop and do some capture, store images and videos, measurements with attached PC software. The built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.



LCD DIGITAL MICROSCOPE SPECIFICATIONS

MODEL

Model Name

DM042



Connection

USB 2.0 to PC/HDMI port to monitor/TV port to monitor

OPTICS

Polarizer

Yes



Magnification

Real 10x~250x(based on 21 inch Display)



Lens type

Optical glass



Focus range

Manual focus 0~110mm



Illumination

8 adjustable white LED

SENSOR

Sensor type

CMOS



Size

5 megapixel



Resolution

2590*1944



Frame rate

25 fps at 5MP output;
35 fps at 2MP output

FEATURES

Software

DigiCapture Pro for
Windows/MacOS



Measurement function

Yes



Certification

CE/FCC/RoHS

PHYSICAL

Dimensions

18*34*30cm



Gross weight

0.2kg



Stand

Comes with metal stand



LCD DIGITAL MICROSCOPE APPLICATIONS

• Hobbies: Coins & Stamps Collection / Antiques / Art restoration / Culture preservation

• Jewelry and Diamond Identify / Watch Repairing / Mineralogy / Material Science/ Education

Mineralogy Handheld LCD Digital Microscope For Pcb Repair Polarizer 0

Mineralogy Handheld LCD Digital Microscope For Pcb Repair Polarizer 1



LCD Digital Microscope Packing ways:

Neutral product with colorful giftbox, 16pcs per carton.

According to export standard packing.
