Shenzhen Toproview Technology Co., Ltd

Optical DM042 Hdmi Digital Microscope For Electronics Repair 1200x Magnification

Product Details:
Place of Origin: China
Brand Name: Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM042
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Screen Size: 4.3 Inch Polarizer Built-in: Yes
Image Sensor: 1/2.8" CMOS Image Sensor Sensor Resolution: 5M Pixels (2592*1944)
Max.resolution By Digital Zoom: 12MP Magnification On 21''monitor: 10x~250x
High Light:

DM042 Hdmi Digital Microscope

,

1200x Hdmi Digital Microscope FCC

,

Digital Microscope For Electronics Repair 1200x

Product Description

LCD Video Digital Microscope Output to HD Monitor TV 1200x Magnification



LCD DIGITAL MICROSCOPE DESCRIPTION

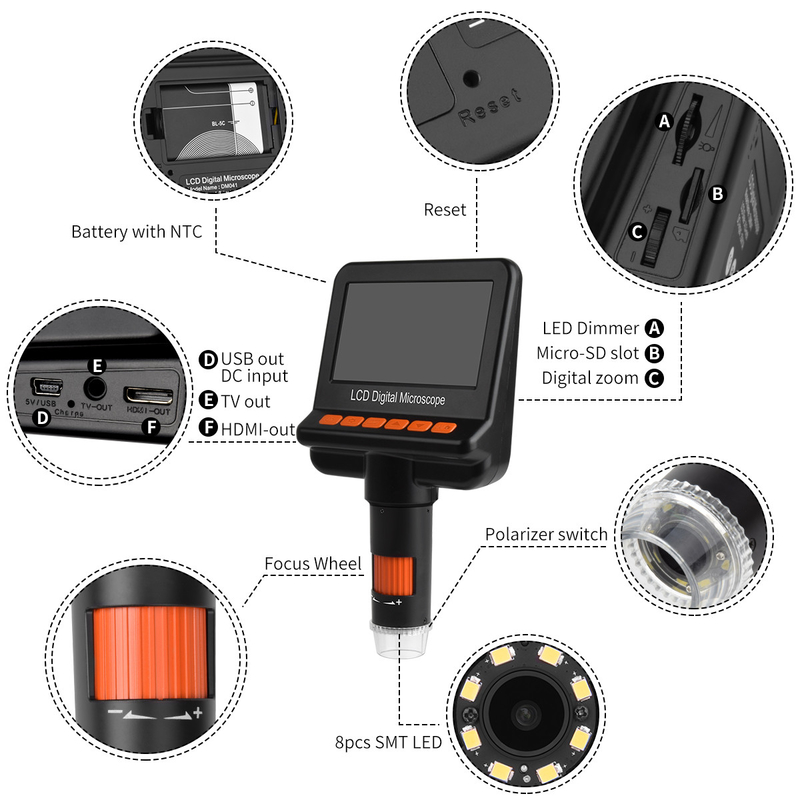

Main Features:

High magnification: up to 1200x by digital zoom

High resolution: up to 12MP resolution by digital zoom

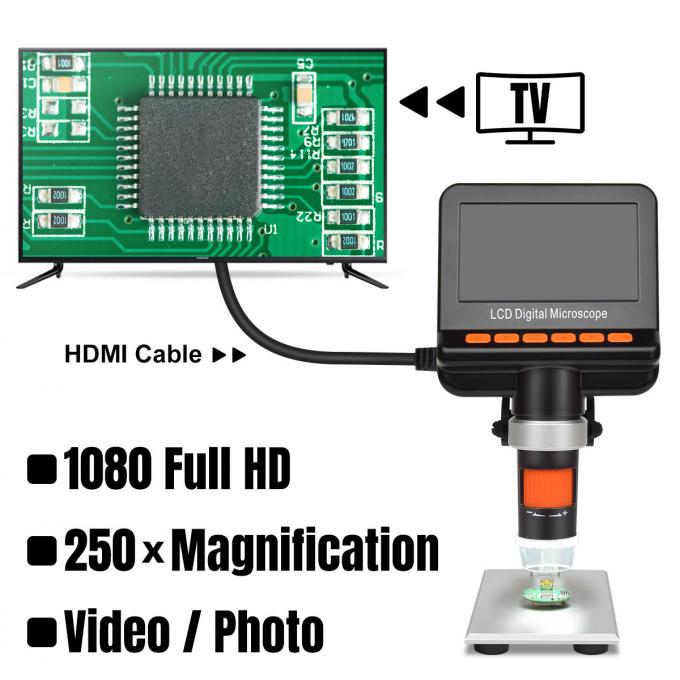

Multifunctional connection type: supports output through USB port to PC; HDMI port to HD monitor; TV port to monitor. Also allow to work with the LCD screen directly, can take photo, video and playback etc., without any connection.



LCD DIGITAL MICROSCOPE SPECIFICATIONS

MODEL

Model Name

DM042



Connection

USB 2.0 to PC/HDMI port to monitor/TV port to monitor

OPTICS

Polarizer

Yes



Magnification

Real 10x~250x(based on 21 inch Display)



Lens type

Optical glass



Focus range

Manual focus 0~110mm



Illumination

8 adjustable white LED

SENSOR

Sensor type

CMOS



Size

5 megapixel



Resolution

2590*1944



Frame rate

25 fps at 5MP output;
35 fps at 2MP output

FEATURES

Software

DigiCapture Pro for
Windows/MacOS



Measurement function

Yes



Certification

CE/FCC/RoHS

PHYSICAL

Dimensions

18*34*30cm



Gross weight

0.2kg



Stand

Comes with metal stand



LCD DIGITAL MICROSCOPE APPLICATIONS

• Coins & Stamps Collection / Antiques / Art restoration / Culture preservation

• Jewelry and Diamond Identify / Watch Repairing / Mineralogy / Material Science/ Education

Optical DM042 Hdmi Digital Microscope For Electronics Repair 1200x Magnification 0

Optical DM042 Hdmi Digital Microscope For Electronics Repair 1200x Magnification 1

Optical DM042 Hdmi Digital Microscope For Electronics Repair 1200x Magnification 2



LCD Digital Microscope Packing ways:

Neutral product with colorful giftbox, 16pcs per carton.

According to export standard packing.



OEM&ODM Service

Our R&D team is with experience in video-related products included digital microscope, digital endoscope, camera etc.,

Please feel free to send your needs to us at sales@toproview.com or send us info online.
