Place of Origin:
China
Brand Name:
Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM022C
Contact Us
Video

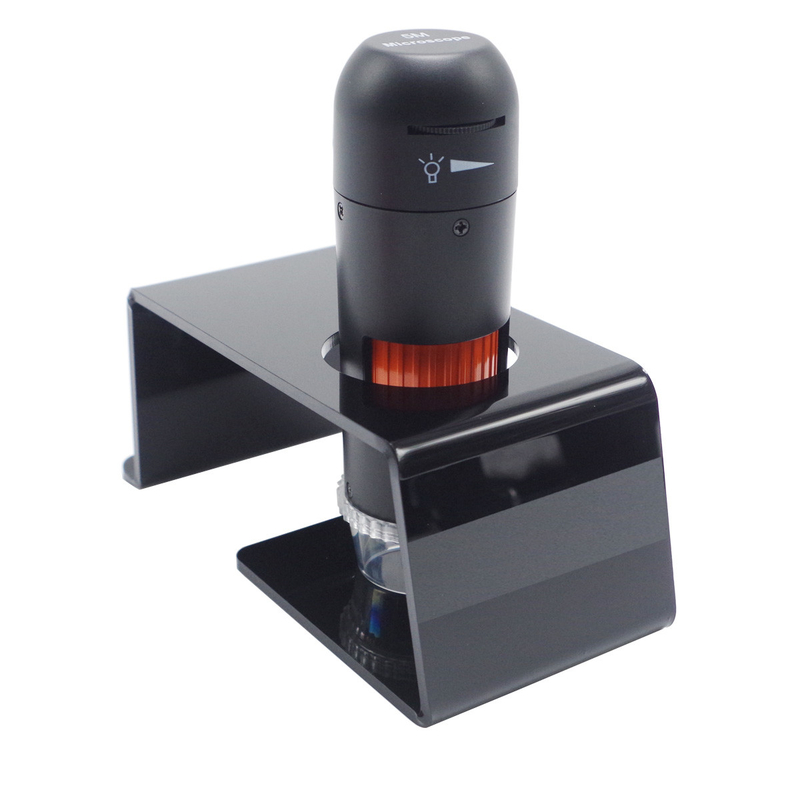

USB Digital Microscope Works with PC Software Real 5MP Resolution 250X Magnification
All of Toproview USB digital microscopes are built-in adjustable polarizer, allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.
PRODUCT DESCRIPTION:
Main Features:
* With Measurement function
* PC Software support four display concurrently
* Compatible with Windows and Mac
Its 5M image sensor presents vivid and sharp amazing image. 8 LEDs with brightness adjustable are good for any inspection enviornment.
With this unit you may see a unique & “bigger” world. All those excellent features make it a good aid for your daily inspection on tiny objects.
* Max frame rate is up to 25fps at 5MP output, user can get the super high quality and smooth viewing and recording.

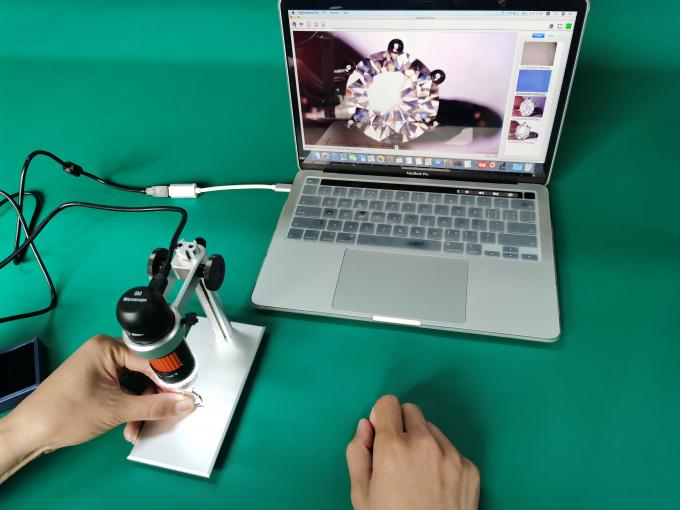

* Supported operation systems with both Windows 7/8/10, and macOS 10.14 and above. No matter Windows computer/laptop or OS system Macbook are compatible. User can also do some mesuring and remard with the attached PC software.
* PC Software supports four living windows concurrently, user with special applications can support to use 4 microscope seeing the living at the same time.
* PC Software with 16 optional languages can reach most of the uses in the worldwide.
* Light source is the dimmable LED ring illuminator (8pcs SMT White LED).
PRODUCT SPECIFICATIONS
|
MODEL |
Model Name |
DM022C |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
APPLICATIONS
• Skin | Dermatoscope
• Hair | Scalp | Trichology
• Industrial and Electronic Inspection
• Collectibles | Jewelry & Watch Repair
USB Digital Microscope Packing ways:
Neutral product with colorful giftbox, 16pcs per carton.
According to export standard packing.
Packing way with customization availble.
Accessories for neutral products:
USB cable,CD,calibration ruler,metal or acrylic stand
OEM&ODM Service
OEM/ODM service: Our digital microscope products OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product microscope, product package or software icon, it’s available. Come to us for more details right now!
Just give us an idea, and we will do the rest for you. All are based on exclusivity term!
