5MP USB Microscope with Polarizer High Frame Rate ODM OEM Available

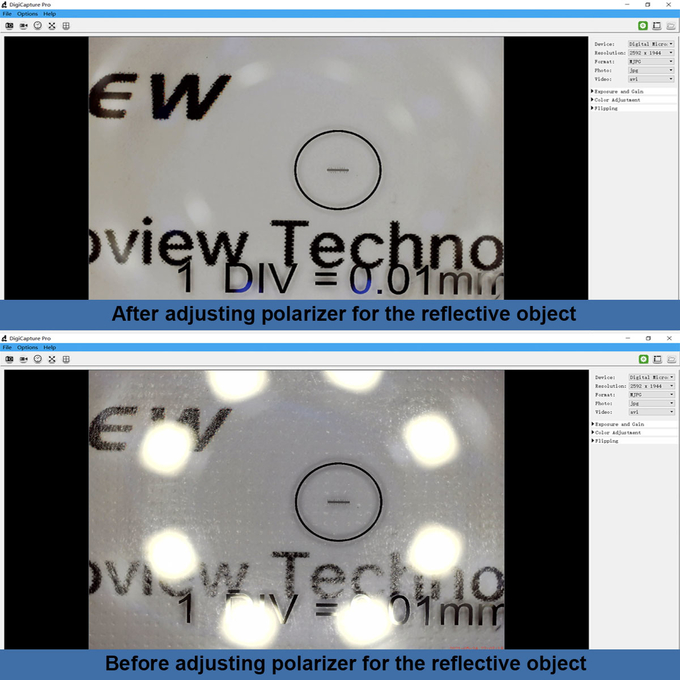

All of Toproview USB digital microscopes are built-in adjustable polarizer, allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.
PRODUCT DESCRIPTION:
Main Features:
* With Polarizer scroll to anti reflective light
* With Measurement function
* With real high resolution definition 5MP sensor

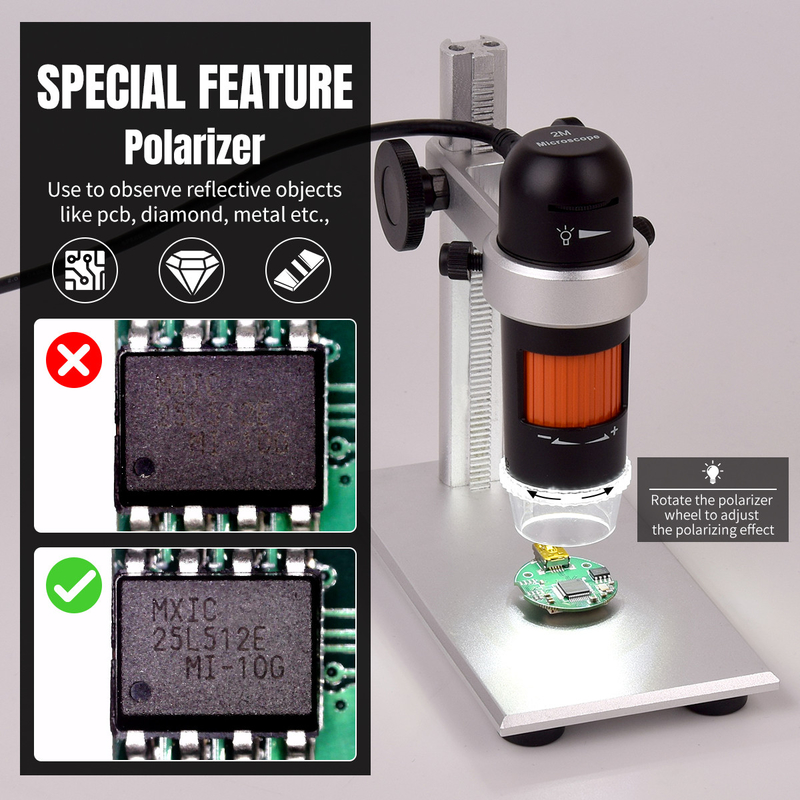

DM022 Series models are the polarizer type USB microscopes that with different and optional resolution, magnification from 0.3MP to 5MP, 10x to 250x. Through USB connection to Windows and Mac computers or laptops. With Toproview PC software “DigiCapture Pro” you can capture, store images and videos and take measurements. The built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.
PRODUCT SPECIFICATIONS
|
MODEL |
Model Name |
DM022C |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
APPLICATIONS
• Industrial and Electronic Inspection
• Skin | Dermatoscope
• Hair | Scalp | Trichology
• Research & Scientific Analysis
• Education | Forensics
• Textile Inspection | Print Inspection
• Collectibles | Jewelry & Watch Repair
USB Digital Microscope Packing ways:
Neutral product with colorful giftbox, 16pcs per carton.
According to export standard packing.
Packing way with customization availble.
Accessories for neutral products:
USB cable,CD,calibration ruler,metal or acrylic stand
