Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DE610
Contact Us

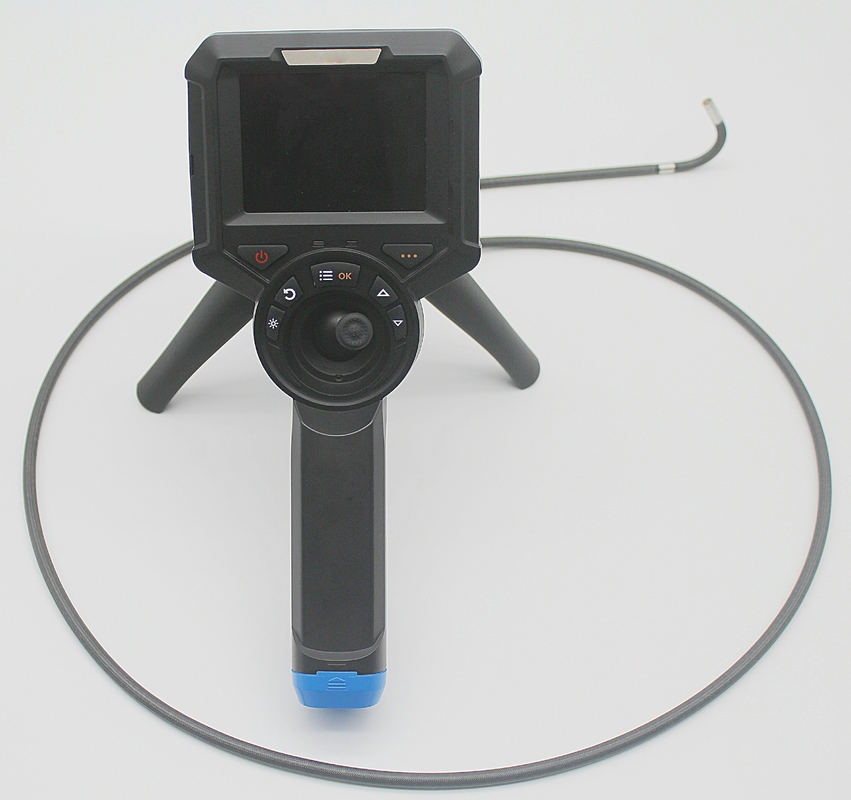

IP67 6mm HD articulating inspection camera 360° Endoscope 3.5 inches display
Main features
* 360° steering video Mega HD pixels endoscope.
* The lens is IP67 waterproof can work underwater for a long time.The insertion tube can be replaced and different diameters are applicable.
Applications
Car overhaul, pipeline detection, appliance repair, crevice fetch,used in automobile engine carbon deposition detection, steel pipe and casting.
| Model | DE610 | DE615 | |
|
Tube System |
Probe Diameter(mm) | Φ6.0 | |
| Tube Length |
1m
1.5m 1m 1.5m |
1.5m | |
| Tube Material | tungsten alloy | ||
| Camera Pixels | 1 mega pixels | ||
| Image Resolution | 1280*720 | ||
| DOF | 7~110mm/20~150mm | ||
| FOV | 120° | ||
| Light Source | LED ceramic light | ||
| Illuminance |
25000Lx
|
||
| Protecting Device of Durability | buffer protection device on the connection between tube and handle | ||

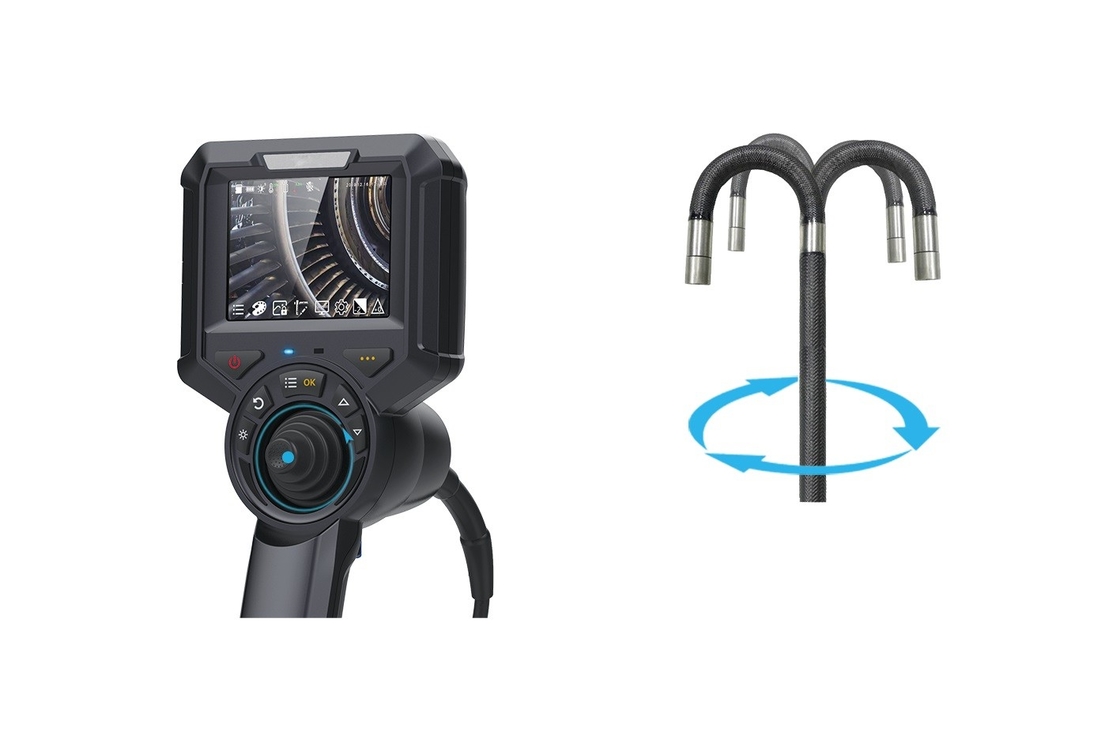

| Articulation | 360° joystick-control articulation | ||
| Bending Angle | maximun: 220° | ||
|
Monitor System |
Structure | hand-held integrated design | |
| Display | 3.5 inches IPS full-view display | ||
| Zoom In/Out | 5X | ||
| Image Effect | image freezing, cold/warm color | ||
| Image Adjustment | image sharpness/ contrast/gamma value | ||
| Image/Video Format | JPEG/MP4 | ||
| File Storage | standard TF card: 16G, Maximum: 64G | ||
| Data Port | HDMI video output, Micro USB port | ||
| Wireless Image Transmission | WIFI(optional) | ||
| Battery | detachable & rechargeable lithium battery | ||
| Battery Capacity | 3.7V,3200mAh | ||
| Battery Working Time | ≥3H | ||
| Battery Charge | DC 5V/1A | ||
| Outer Case Material | anti-fall engineering alloy material | ||
| Water/Dust Proof | probe/tube: IP67; monitor: IP65 | ||
| Weight | ≈0.5KG | ||
| Accwssories | Standard Configuration | instrument case/ videoscope/ battery card reader/ TF card/charger/ USB cable/ manual | |
| optional | extendable pole: 0.35-1.8m/mini HDMI cable/ foldable tripod | ||
OEM&ODM Service
We could reach most of your requirement in OEM, ODM orders.Just give us an idea, and we will do the rest for you. All are based on exclusivity term!
