Shenzhen Toproview Technology Co., Ltd

PCB USB Digital Microscope 5MP 250x Handheld Digital Microscope

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE / FCC / RoHS
Model Number: DM022C
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 16pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM022C Switchable Polarizer: Yes
Magnification: Real 10x~250x(Based On 21 Inch Display) Resolution: 5MP / 4MP / 3MP / 2MP / 1.3MP
PC Software OSD Language: 16 Languages Max.Frame: 25 Fps
High Light:

PCB USB Digital Microscope 5MP

,

USB Digital Microscope 5MP 250x

,

250x Handheld Digital Microscope

Product Description

USB Portable Handheld 5MP 250x Magnification Polarizer Digital Microscope For For PCB Repair



1: This USB microscope camera is compatible with Windows and Mac.It is plug and play.

2: This USB Digital Microscope is a USB handheld digital microscope that has been designed to work with Windows or Mac computer.



Product Specification:

Model Model Name DM022C
Features Connection USB 2.0 to PC
Image Sensor 5 Megapixel 1/3.2" CMOS Image Sensor
Photo And Video Resolution 5MP / 4MP / 3MP / 2MP / 1.3MP
Magnification Ratio Real 10x~250x(Based On 21 inch Display)
Max.Frame Rate 25 fps at 5MP Output
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 55mm on metal stand
Lens Type Optical Glass

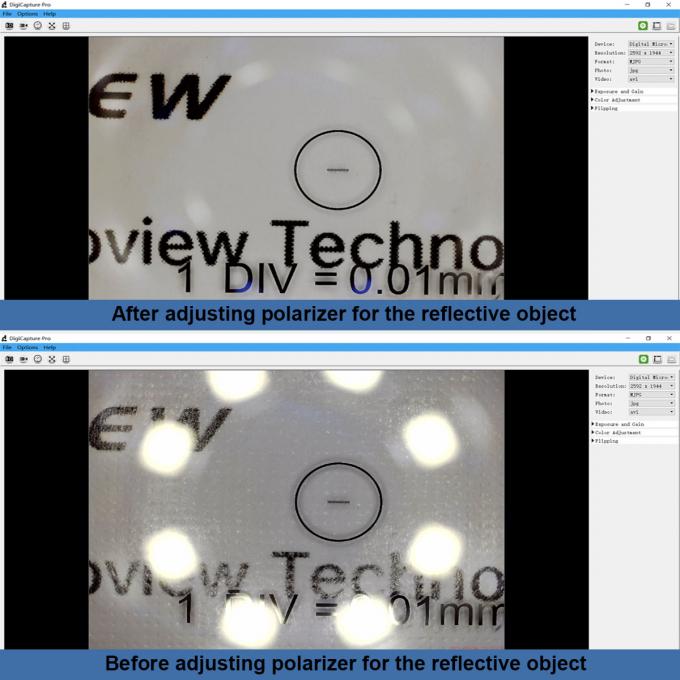

Advantage Switchable Polarizer Yes
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Focus Mode Manual Continuous Focus
Warranty 1 Year
Software PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7 / 8 / 10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB cable,calibration ruler,metal stand
Body Dimension 110x35x25mm
Gross Weight 0.06KG
Gift Box 22*16*9cm
Gross Weight 0.6KG
Carton Box 46.5*33*37.5cm
Gross Weight 10.5KG
Carton 16Pcs



Product Advantages:

1: With easy-to-use operation and wide application from micro soldering, rocks checking to coins/stamps observing, this USB digital microscope is perfect for adults, students, and young learners, enhancing the interactivity between parents and kids, teachers and students.

2: This USB microscope Easy to operate, allows you to take it on your trips for children to study plants, minerals, insects, or have fun outdoor activities.

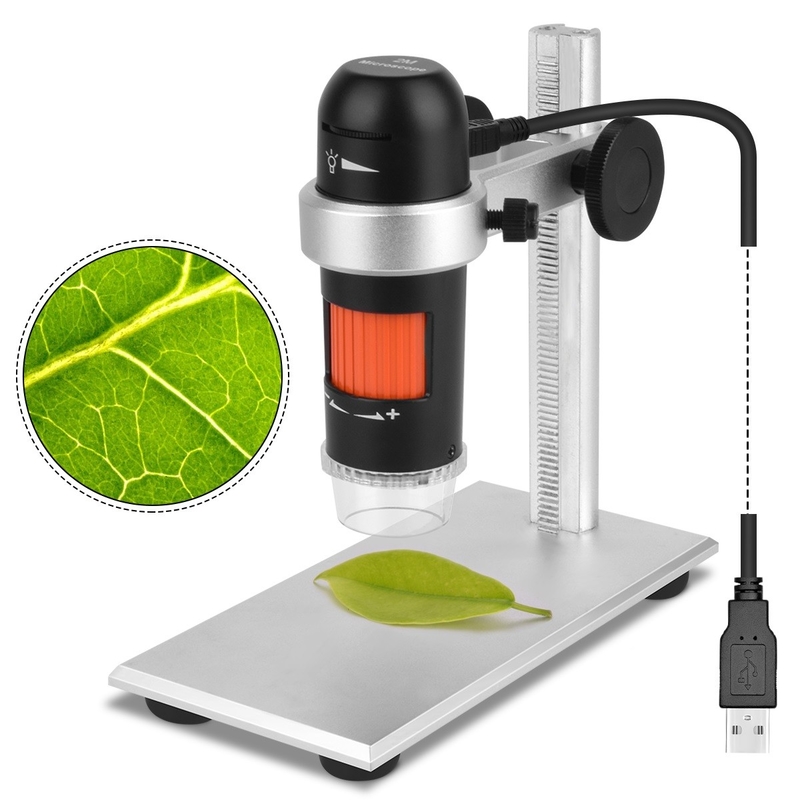

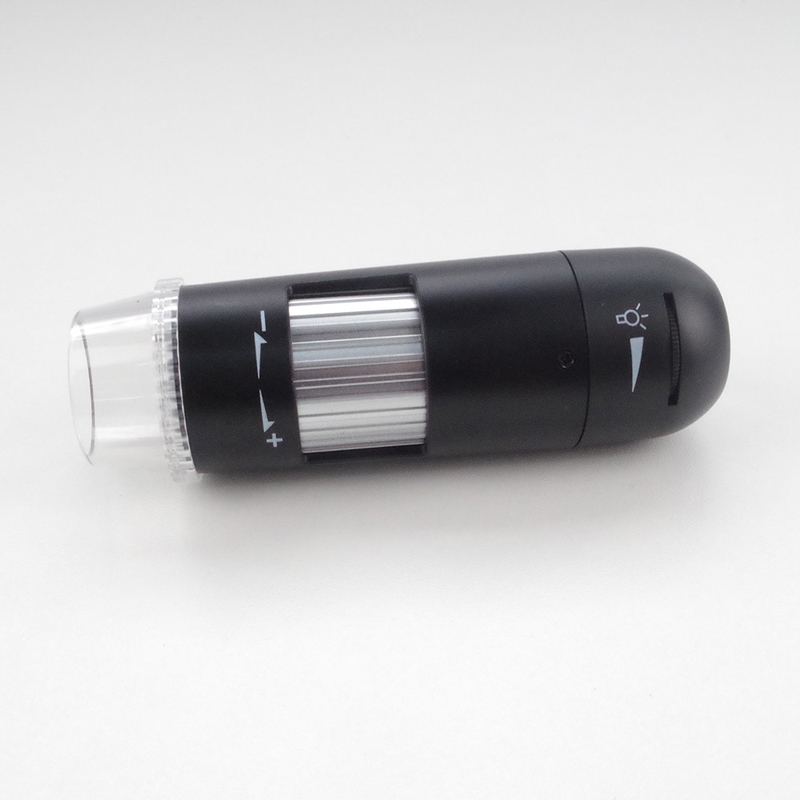

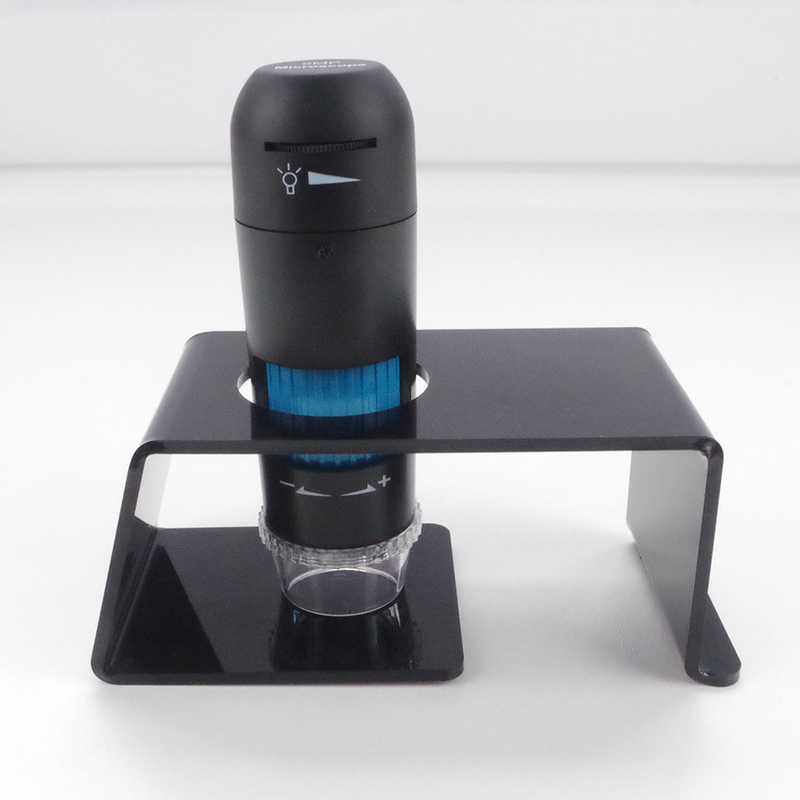

Product picture:

PCB USB Digital Microscope 5MP 250x  Handheld Digital Microscope 0



FAQ:

PCB USB Digital Microscope 5MP 250x  Handheld Digital Microscope 1
