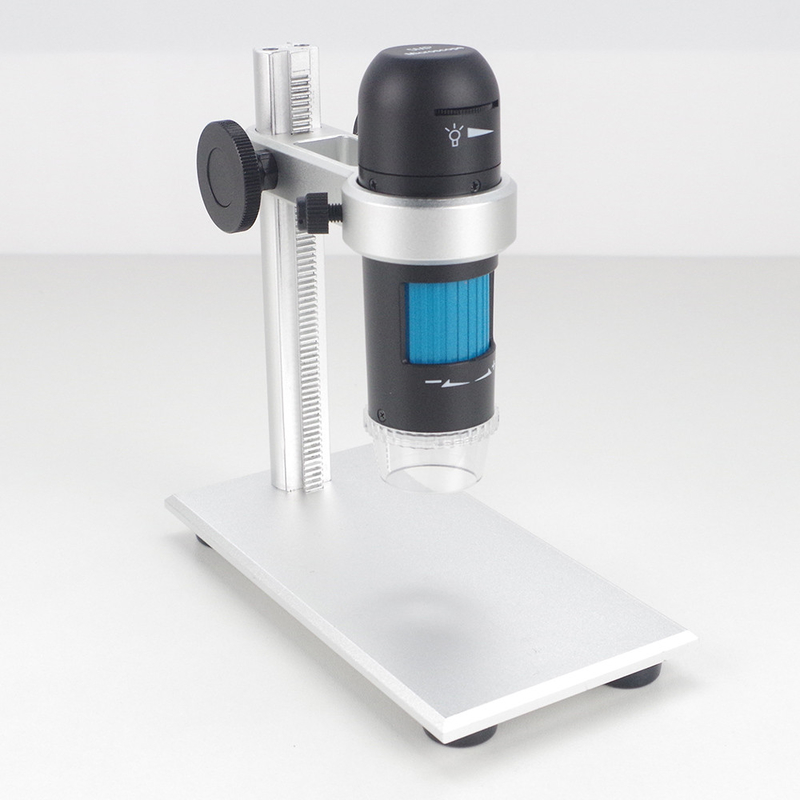

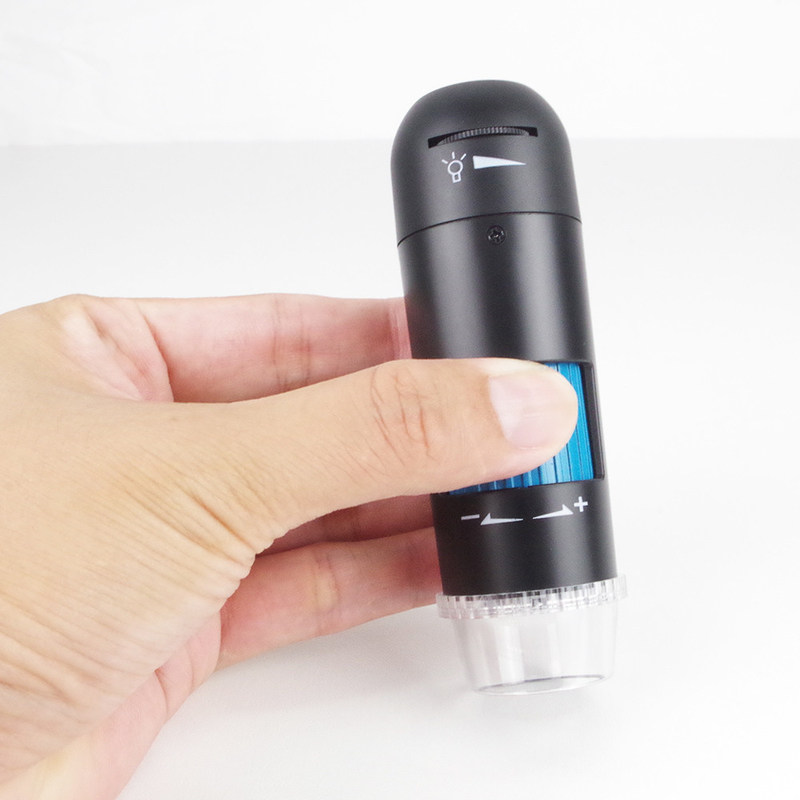

CE 5MP Usb Microscope Polarizer High Resolution Digital Microscope

Product Details:
Place of Origin: China
Brand Name: Toproview/Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM022C
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: $45~$70/pc
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Polarizer Built-in: Yes Image Sensor: 1/3.2" CMOS Image Sensor
Sensor Resolution: 5M Pixels (2592*1944) Magnification On 21''monitor: 10x~250x
Max. Frame: 25fps@5MP Supported Operation Systems: Windows 7/8/10,macOS 10.14 And Above
PC Softwarewith Measurement: Yes Illumination: Dimmable LED Ring Illuminator (8pcs SMT White LED)
High Light:

CE 5MP Usb Microscope

,

5MP Usb Microscope Polarizer

,

Polarizer High Resolution Digital Microscope

Product Description

All of Toproview USB digital microscopes are built-in adjustable polarizer, allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.


Empowered with USB 2.0 interface, our usb type microscopes support connecting through USB to Windows or macOS computer to observe and analyse the captures&recordings or live images&video with our powerful user-friendly software "DigiCapture Pro" for advanced image processing.



SPECIFICATIONS

MODEL Model Name DM022C
  Connection USB 2.0
OPTICS Polarizer Yes
  Magnification Real 10x~250x(based on 21 inch Display)
  Lens type Optical glass
  Focus range Manual focus 0~110mm
  Illumination 8 adjustable white LED
SENSOR Sensor type CMOS
  Size 5 megapixel
  Resolution 2590*1944
  Frame rate 25 fps at 5MP output;
35 fps at 2MP output
FEATURES Software DigiCapture Pro for
Windows/MacOS
  Measurement function Yes
  Certification CE/FCC/RoHS
PHYSICAL Dimensions 18*34*30cm
  Gross weight 0.2kg
  Stand Comes with metal stand





All of Toproview USB digital microscopes are built-in adjustable polarizer, allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.


Empowered with USB 2.0 interface, our usb type microscopes support connecting through USB to Windows or macOS computer to observe and analyse the captures&recordings or live images&video with our powerful user-friendly software "DigiCapture Pro" for advanced image processing.



SPECIFICATIONS

MODEL Model Name DM022C
  Connection USB 2.0
OPTICS Polarizer Yes
  Magnification Real 10x~250x(based on 21 inch Display)
  Lens type Optical glass
  Focus range Manual focus 0~110mm
  Illumination 8 adjustable white LED
SENSOR Sensor type CMOS
  Size 5 megapixel
  Resolution 2590*1944
  Frame rate 25 fps at 5MP output;
35 fps at 2MP output
FEATURES Software DigiCapture Pro for
Windows/MacOS
  Measurement function Yes
  Certification CE/FCC/RoHS
PHYSICAL Dimensions 18*34*30cm
  Gross weight 0.2kg
  Stand Comes with metal stand
