HDMI 1200x Electronic Digital Microscope Camera With Display 12MP Polarizer

HDMI 1200x Electronic Digital Microscope Camera With Display 12MP Polarizer

1200x Electronic Digital Microscope FCC

Microscope Camera With Display 12MP FCC

Polarizer Electronic Digital Microscope

Place of Origin:

China

Brand Name:

Toproview/Neutral/Customization

Certification:

CE/FCC/RoHS

Model Number:

DM042

Contact Us

Request A Quote
Product Details
Model:
DM042 12MP LCD Microscope
Max. Resolution By Digital Zoom:
Up To 12MP
Max.magnification By Digital Zoom:
1200x
Sensor:
5MP CMOS
Theory:
Biological Microscope
PC Software:
Support And With Measurement
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Neutral/Customization Giftbox/16pcs per carton
Delivery Time
5~35 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
50000pcs/month
Product Description



HDMI LCD USB Digital Microscope with 12MP High Quality Resolution 1200x Magnification



PRODUCT DESCRIPTION

Main Features

* High magnification: real 250x and up to 1200x by digital zoom.

* Polarizer build in: allows to reduce reflection, very usefual for observing objects with shiny surface like diamond, jewelry, metal etc.,

* Features HDMI output enabling the microscope to be connected with external monitors, giving user the unexpected experience of viewing and photographing.



Quick Details

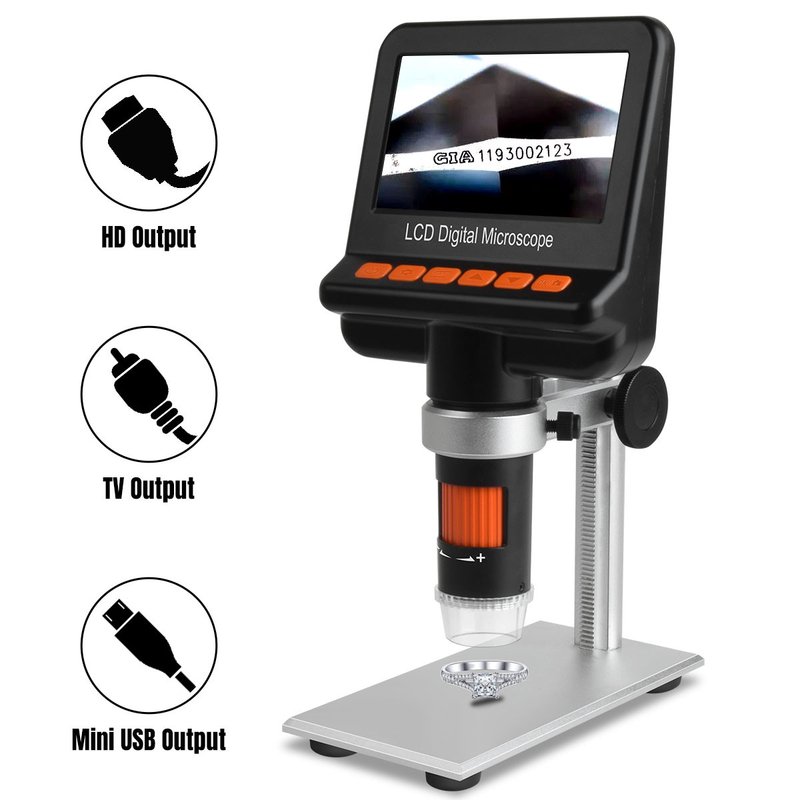

DM042 is the polarizer type LCD digital microscopes that with high resolution and multiple output methods for various applications. It supports for 4 kinds of connection: live viewing, capture, recording by the device itself; through HDMI cable to output live into HDMI monitor; through TV cable to output live into TV monitor; through USB cable connecting to Windows, Mac computes or laptop and do some capture, store images and videos, measurements with attached PC software. The built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.



LCD DIGITAL MICROSCOPE SPECIFICATIONS

MODEL

Model Name

DM042



Connection

USB 2.0 to PC/HDMI port to monitor/TV port to monitor

OPTICS

Polarizer

Yes



Magnification

Real 10x~250x(based on 21 inch Display)



Lens type

Optical glass



Focus range

Manual focus 0~110mm



Illumination

8 adjustable white LED

SENSOR

Sensor type

CMOS



Size

5 megapixel



Resolution

2590*1944



Frame rate

25 fps at 5MP output;
35 fps at 2MP output

FEATURES

Software

DigiCapture Pro for
Windows/MacOS



Measurement function

Yes



Certification

CE/FCC/RoHS

PHYSICAL

Dimensions

18*34*30cm



Gross weight

0.2kg



Stand

Comes with metal stand



HDMI 1200x Electronic Digital Microscope Camera With Display 12MP Polarizer 0

HDMI 1200x Electronic Digital Microscope Camera With Display 12MP Polarizer 1HDMI 1200x Electronic Digital Microscope Camera With Display 12MP Polarizer 2

Packing ways

Neutral product with colorful gift box, 16pcs per carton.

According to export standard packing.

Packing way with customization available.
