Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM022C
Contact Us
250x 5MP Polarizing USB Hair Scalp Analysis with Software Included for Home Usage
Quick Details

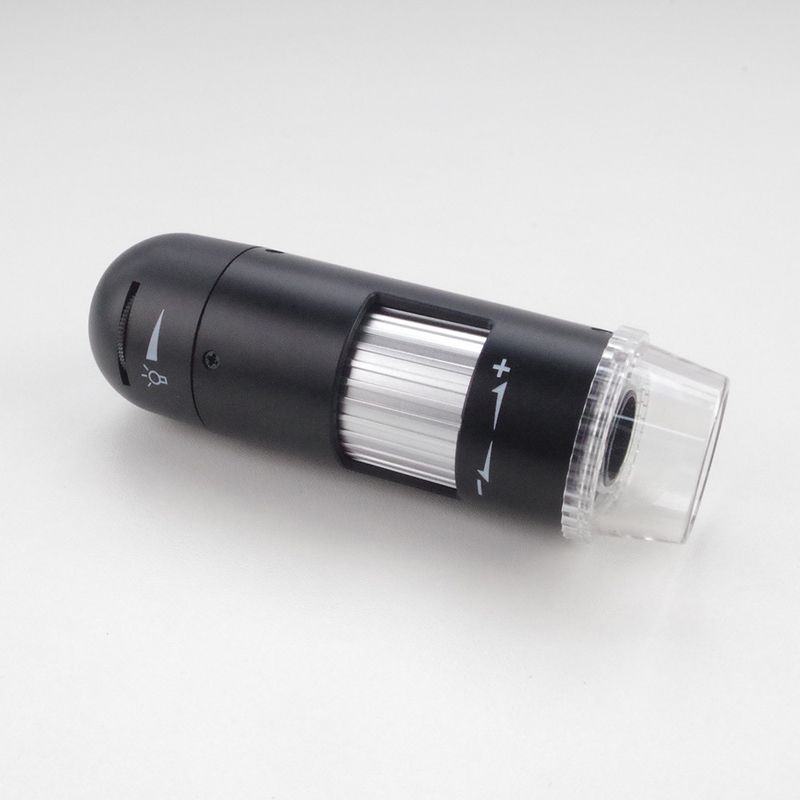

DM022 Series models are the polarizer type USB microscopes that with different and optional resolution, magnification from 0.3MP to 5MP, 10x to 250x. Through USB connection to Windows and Mac computers or laptops. With Toproview PC software “DigiCapture Pro” you can capture, store images and videos and take measurements. The built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.
DM022C is the highest specification model. Its 5M image sensor presents vivid and sharp amazing image. 8 LEDs with brightness adjustable are good for any inspection enviornment.
With this unit you may see a unique & “bigger” world. All those excellent features make it a good aid for your daily inspection on tiny objects.
Main features
* Photo and video resolution are optional from 5MP, 4MP, 3MP, 2MP, 1.3MP.
* PC Software supports four living windows concurrently, user with special applications can support to use 4 microscope seeing the living at the same time.
* Supported operation systems with both Windows 7/8/10, and macOS 10.14 and above. No matter Windows computer/laptop or OS system Macbook are compatible. User can also do some mesuring and remard with the attached PC software.
PRODUCT SPECIFICATIONS
|
MODEL |
Model Name |
DM022C |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|

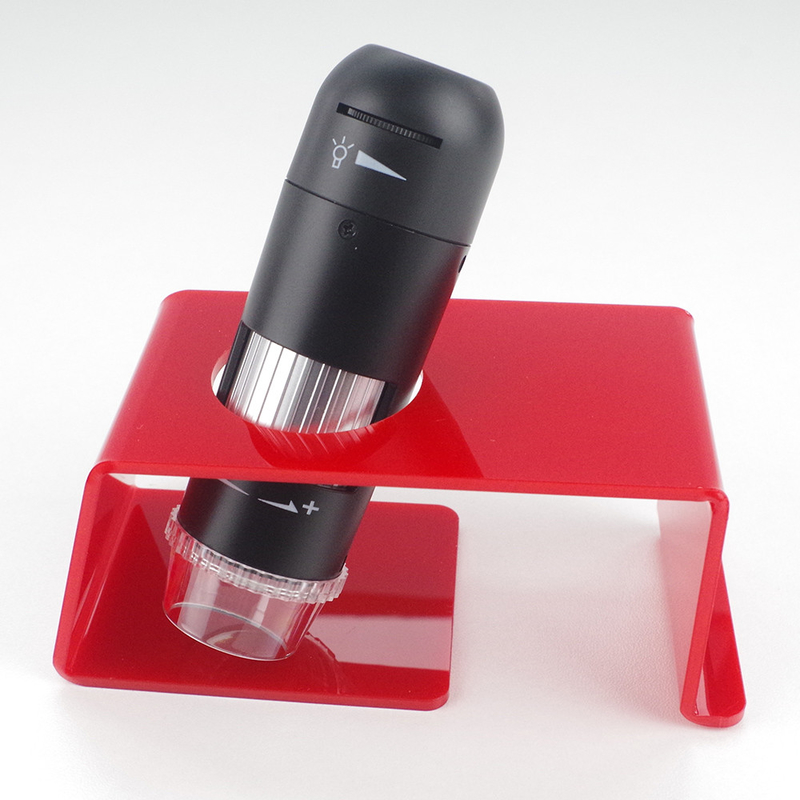

Stand |
Comes with me |
OEM&ODM Service
OEM/ODM service: Our digital microscope products OEM and ODM service is always ready!
We are with the strong Research and Development ability. We warmly welcome customers to cooperate with us to develop new products.
Just give us an idea, and we will do the rest for you. All are based on exclusivity term!
