Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM022C
Contact Us

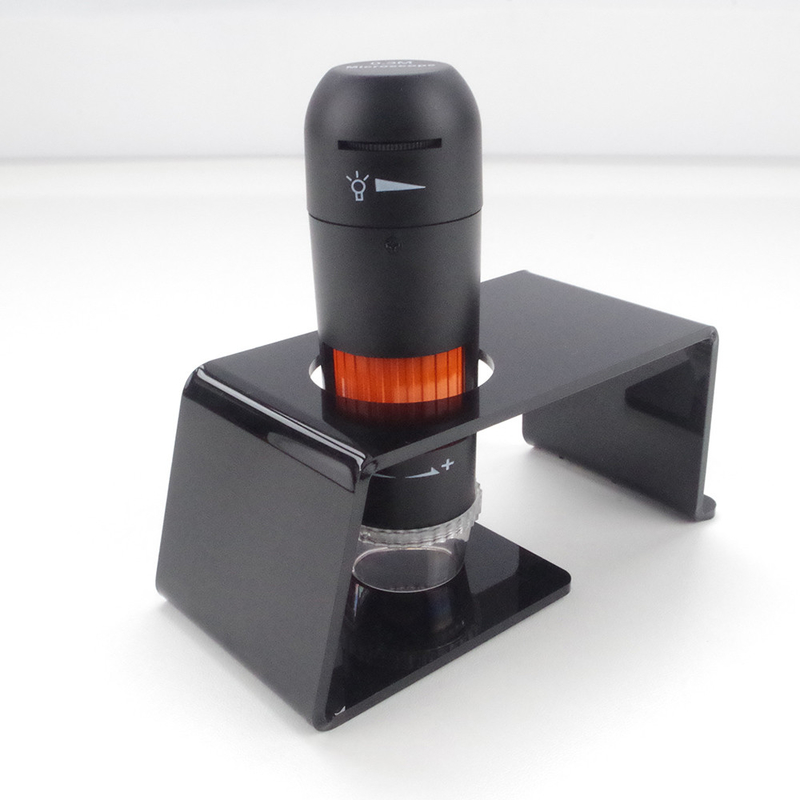

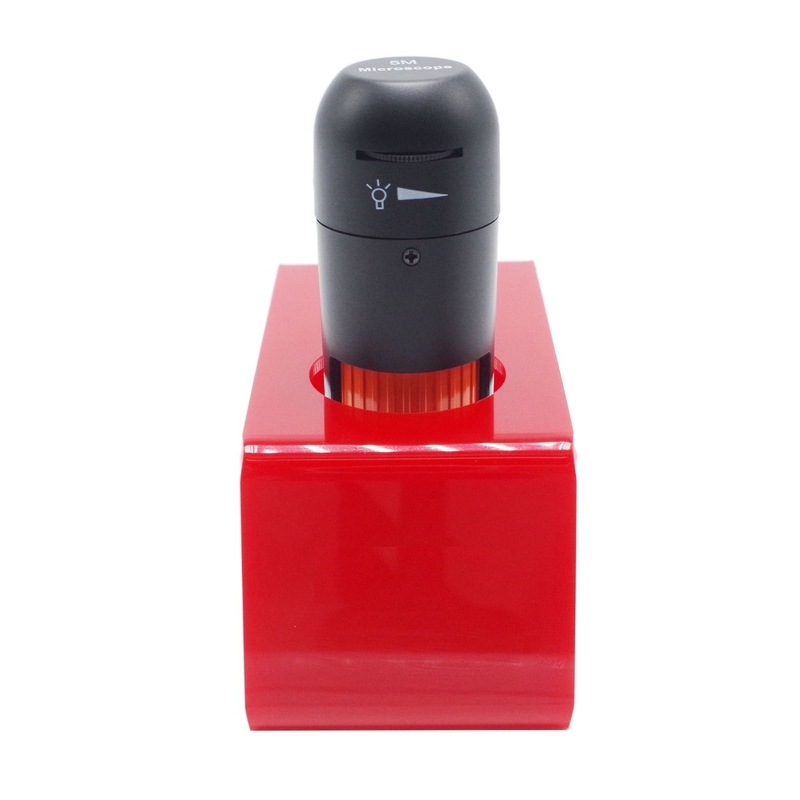

High Resolution Digital Microscope with High Frame Rate 30fps at 5MP Output
PRODUCT DESCRIPTION
Quick Details
Just simply plug this USB microscope into your computer, it will play with video output, you can capture a video or photo, analyze and save images with enclosed free software. Absolutely you will be amazed by its excellent quality.
With True 5MP sensor to capture and save high-resolution images and videos of your specimens.
Main features
* With polarizer to filter the reflection on objection’s surface
* Photo and video resolution are optional from 5MP, 4MP, 3MP, 2MP, 1.3MP.
* PC Software supports four living windows concurrently, user with special applications can support to use 4 microscope seeing the living at the same time.
* PC Software with 16 optional languages can reach most of the uses in the worldwide.
* Light source is the dimmable LED ring illuminator (8pcs SMT White LED).
PRODUCT SPECIFICATIONS
|
MODEL |
Model Name |
DM022C |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
OEM&ODM Service
OEM/ODM service: Our digital microscope products OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product microscope, product package or software icon, it’s available. Come to us for more details right now!
Please feel free to send your needs to us at jessie.zhuang@toproview.com or send us info online.
