Polarizing iOS 12.0 Android 4.2 WiFi Digital Microscope for Diamond Jewlry Metal Inspection
WIFI DIGITAL MICROSCOPE DESCRIPTION
Quick Details

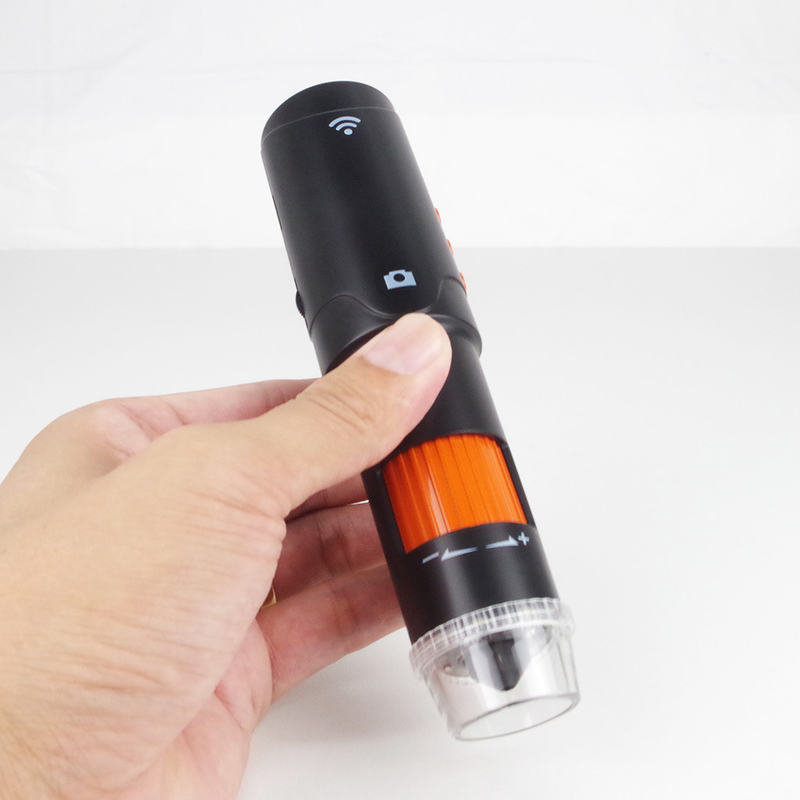

2022 New released Toproview Wirelss Digital Microscopes DM023A are built-in adjustable polarizer, allows to freely remove the unwanted reflection or glare from the object surface for a better contrast. With main features 200x magnification, 2MP resolution, replaceable 18650 battery, microtouch area for capturing.
Main Features
Digital zoom by microscope is available, user can zoom out or zoom in to see the partial view with this function.
* With SD card slot on microscope body, support SD card storage up to 32G. User can use the microscope with or without SD card inserted. The SD card slot is designed for people who is required the data transmission but not in the good network status.
* With replaceable and rechargeable battery, 18650 lithium-Ion battery 2000mAh. Support continue working up to 2.5 hours.
WIFI DIGITAL MICROSCOPE SPECIFICATION
|
MODEL |
Model Name |
DM023A |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Frame rate |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later, Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10,macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes, with recording button on microscope |
|
|
Recording by microscope |
Yes, with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|

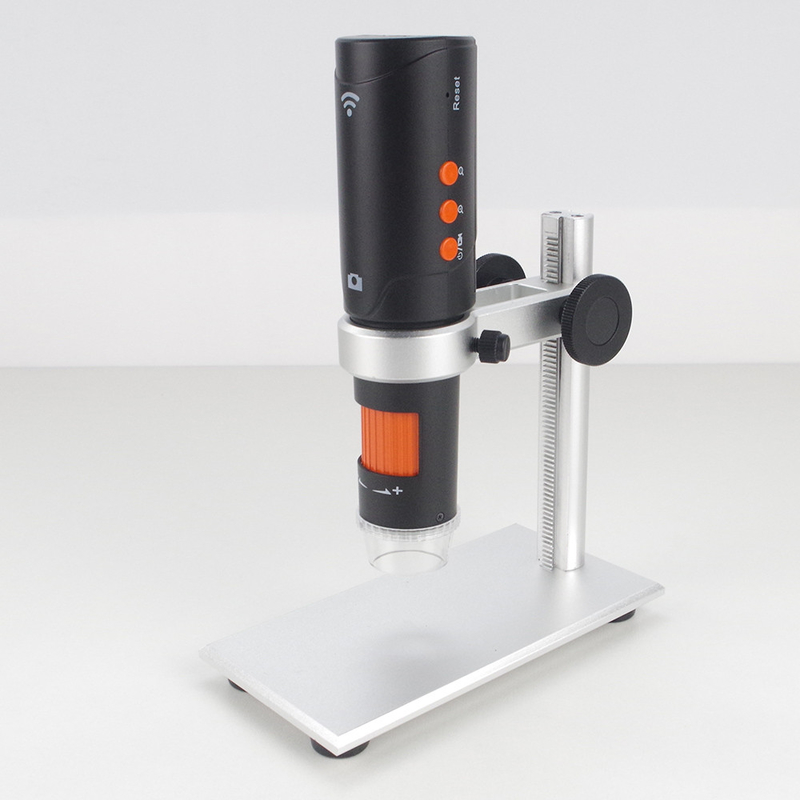

Stand |
Metal stand for neutral product; support to customize |
PRODUCT ADVANTAGE

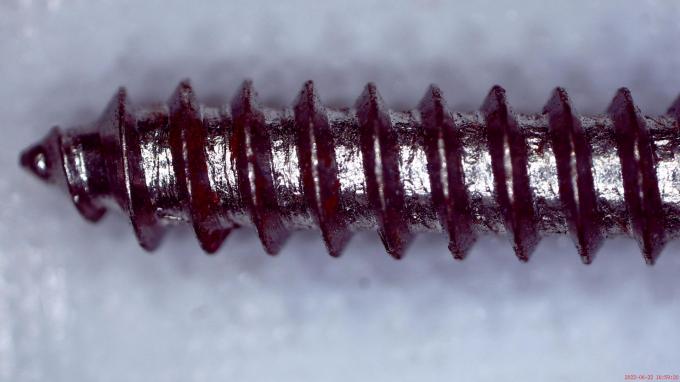

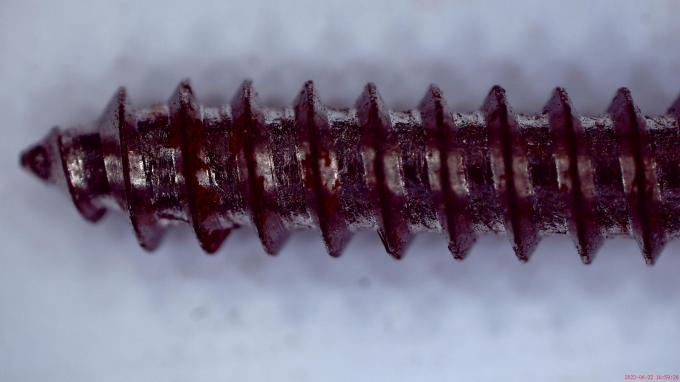

Microscopes with polarizers are a crucial tool to modulate light and use it to study materials in many different ways. Toproview polarizing digital microscopes have been designed to reduce glare, view subsurface layers, and improve image contrast.
WIRELESS DIGITAL MICROSCOPE APPLICATION
Wide application field: Industrial and electronic inspectin, Skin Dermatoscope, Hair Scalp Trichology, Research and scientific analysis, Education forensics, Textile inspection, Print inspection, Collectibles, Jewelry and watch repair etc.,
OEM&ODM Service
OEM/ODM service: Our digital microscope products OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product microscope, product package or software icon, it’s available. Come to us for more details right now!
Just give us an idea, and we will do the rest for you. All are based on exclusivity term!
